Модель: Угловые контактные подшипники с одним рядом
Марка продукта: MBY
Количество:
Запрос цены Добавить в корзину

Однорядные радиально-упорные шарикоподшипники

Описание продукта
Подшипники MBY® Angular Contact Balling имеют гоночные дорожки во внутренних и внешних кольцах, которые смещены по отношению друг к другу в направлении оси подшипника. Эти подшипники предназначены для размещения комбинированных нагрузок и достижения высоких скоростей. Угол контакта α определяется как угол между линией, соединяющей точки контакта мяча и гоночные трассы в радиальной плоскости, и линии, перпендикулярной оси подшипника. Нагрузка, несущая способность угловых контактных шариков, увеличивается с увеличением угла контакта. Угловые контактные шарики обычно используются парами или даже больше с проставками.

MBY® предлагает комплексные диапазоны угловых контактных шариков, которые доступны в:
-     Одиночная ряд и двойная ряд
-     Открытые и запечатанные типы
-     Угол контакта 15, 30 или 40 градусов
-     Хромированная сталь, керамика или гибридные материалы
-     Полиамид, стальная и латунная клетка

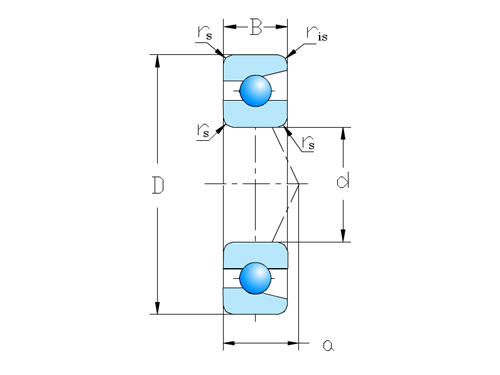

图片 2

Примечание:Проведите влево или вправо, чтобы просмотреть полный стол!
Несущий Граница Dimensions Базовый нагрузка Рейтинг Ограничение Скорость работающий Плечо Масса
Designation2) (мм) ( кН ) (RPM) точка Dimensions (кг)




должность (мм)
с Резка Клетка с нажатие Клетка (мм)
d D B r r1 Cr Cили же Cr Cили же Смазка Масло a da Da ra Примерно
(мин.) (мин.) (мин.) (Максимум.) (Максимум.)
7000 10 26 8 0.3 0.15 5 2.35 0 0 34000 42000 9.1 12.5 23.5 0.3 0.021
7000b 10 26 8 0.3 0.15 4.65 2.15 0 0 25000 33000 11.6 12.5 23.5 0.3 0.021
7000с 10 26 8 0.3 0.15 5.3 2.45 0 0 47000 62000 6.4 12.5 23.5 0.3 0.021
7001 12 28 8 0.3 0.15 5.4 2.75 0 0 29000 37000 9.9 14.5 25.5 0.3 0.024
7001b 12 28 8 0.3 0.15 4.95 2.5 0 0 22000 29000 12.6 14.5 25.5 0.3 0.024
7001c 12 28 8 0.3 0.15 5.8 2.95 0 0 40000 54000 6.7 14.5 25.5 0.3 0.024
7002 15 32 9 0.3 0.15 6.1 3.45 0 0 26000 32000 11.3 17.5 29.5 0.3 0.035
7002b 15 32 9 0.3 0.15 5.55 3.15 0 0 19000 25000 14.6 17.5 29.5 0.3 0.035
7002c 15 32 9 0.3 0.15 6.6 3.7 0 0 35000 47000 7.6 17.5 29.5 0.3 0.035
7003 17 35 10 0.3 0.15 6.75 4.15 0 0 23000 28000 12.7 19.5 32.5 0.3 0.045
7003b 17 35 10 0.3 0.15 6.1 3.75 0 0 17000 23000 16.1 19.5 32.5 0.3 0.045
7003c 17 35 10 0.3 0.15 7.3 4.45 0 0 31000 41000 8.6 19.5 32.5 0.3 0.045
7004 20 42 12 0.6 0.3 10.3 6.1 0 0 19000 24000 15.1 24.5 47.5 0.6 0.079
7004b 20 42 12 0.6 0.3 9.35 5.55 0 0 14000 19000 19.2 24.5 37.5 0.6 0.079
7004c 20 42 12 0.6 0.3 11.1 6.6 0 0 26000 35000 10.2 24.5 37.5 0.6 0.079
7005 25 47 12 0.6 0.3 11.3 7.4 0 0 17000 21000 16.4 29.5 42.5 0.6 0.091
7005b 25 47 12 0.6 0.3 10.2 6.7 0 0 12000 17000 21.1 29.5 42.5 0.6 0.091
7005c 25 47 12 0.6 0.3 12.3 9 0 0 23000 30000 10.8 29.5 42.5 0.6 0.091
7006 30 55 13 1 0.6 14.5 10.1 0 0 14000 18000 18.8 35.5 49.5 1 0.133
7006b 30 55 13 1 0.6 13.1 9.2 0 0 11000 14000 24.3 35.5 49.5 1 0.133
7006с 30 55 13 1 0.6 15.8 11 0 0 20000 26000 12.2 35.5 49.5 1 0.133
7007 35 62 14 1 0.6 17.5 12.6 0 0 12000 15000 21.2 40.5 56.5 1 0.17
7007b 35 62 14 1 0.6 15.8 11.4 0 0 9200 12000 27.6 40.5 56.5 1 0.17
7007c 35 62 14 1 0.6 19.1 13.7 0 0 17000 22000 13.5 40.5 56.5 1 0.17
7008 40 68 15 1 0.6 18.7 14.6 0 0 11000 14000 23.2 45.5 62.5 1 0.21
7008b 40 68 15 1 0.6 16.8 13.2 0 0 8300 11000 30.2 45.5 62.5 1 0.21
7008с 40 68 15 1 0.6 20.5 15.9 0 0 15000 20000 14.8 45.5 62.5 1 0.21
7009 45 75 16 1 0.6 22.2 17.7 0 0 10000 12000 25.3 50.5 69.5 1 0.26
7009b 45 75 16 1 0.6 20 16 0 0 7500 10000 33.2 50.5 69.5 1 0.26
7009с 45 75 16 1 0.6 24.4 19.3 0 0 14000 18000 16 50.5 69.5 1 0.26
7010 50 80 16 1 0.6 23.6 20.1 0 0 9200 11000 26.9 55.5 74.5 1 0.29
7010b 50 80 16 1 0.6 21.2 18.1 0 0 6900 9200 35.3 55.5 74.5 1 0.29
7010c 50 80 16 1 0.6 26 21.9 0 0 13000 17000 16.8 55.5 74.5 1 0.29
7011 55 90 18 1.1 0.6 31.1 26.3 0 0 8300 10000 29.9 62 83 1 0.42
7011b 55 90 18 1.1 0.6 27.9 23.7 0 0 6200 8300 39.4 62 83 1 0.42
7011c 55 90 18 1.1 0.6 34.1 28.6 0 0 11000 15000 18.7 62 83 1 0.42
7012 60 95 18 1.1 0.6 31.9 28.1 0 0 7700 9700 31.4 67 88 1 0.45
7012b 60 95 18 1.1 0.6 28.6 25.3 0 0 5800 7700 41.5 67 88 1 0.45
7012c 60 95 18 1.1 0.6 35 30.6 0 0 11000 14000 19.4 67 88 1 0.45
7013 65 100 18 1.1 0.6 33.7 31.4 0 0 7200 9000 33 72 93 1 0.47
7013b 65 100 18 1.1 0.6 30.1 28.3 0 0 5400 7200 43.8 72 93 1 0.47
7013c 65 100 18 1.1 0.6 37.1 34.3 0 0 10000 13000 20.1 72 93 1 0.47
7014 70 110 20 1.1 0.6 42.7 39.4 0 0 6600 8300 36 77 103 1 0.66
7014b 70 110 20 1.1 0.6 38.3 35.5 0 0 5000 6600 47.8 77 103 1 0.66
7014c 70 110 20 1.1 0.6 46.9 43 0 0 9200 12000 22.1 77 103 1 0.66
7015 75 115 20 1.1 0.6 43.6 41.7 0 0 6300 7800 37.4 82 108 1 0.69
7015b 75 115 20 1.1 0.6 39.1 37.6 0 0 4700 6300 49.9 82 108 1 0.69
7015c 75 115 20 1.1 0.6 48 45.6 0 0 8700 11000 22.7 82 108 1 0.69
7016 80 125 22 1.1 0.6 53.4 50.6 0 0 5800 7200 40.6 87 118 1 0.93
7016b 80 125 22 1.1 0.6 47.8 45.7 0 0 4300 5800 54 87 118 1 0.93
7016c 80 125 22 1.1 0.6 58.7 55.3 0 0 8000 11000 24.7 87 118 1 0.93
7017 85 130 22 1.1 0.6 54.6 53.7 0 0 5500 6800 42.3 92 123 1 0.97
7017b 85 130 22 1.1 0.6 48.8 48.4 0 0 4100 5500 56.5 92 123 1 0.97
7017c 85 130 22 1.1 0.6 60.1 58.7 0 0 7600 10000 25.5 92 123 1 0.97
7018 90 140 24 1.5 1 65.2 63.3 0 0 5100 6400 45.2 98.5 131.5 1.5 1.26
7018b 90 140 24 1.5 1 58.4 57.1 0 0 3900 5100 60.2 98.5 131.5 1.5 1.26
7018c 90 140 24 1.5 1 71.7 69.1 0 0 7100 9400 27.4 98.5 131.5 1.5 1.26
7019 95 145 24 1.5 1 66.6 67.1 0 0 4800 6000 47.2 103.5 136.5 1.5 1.32
7019b 95 145 24 1.5 1 59.6 60.5 0 0 3600 4800 63.2 103.5 136.5 1.5 1.32
7019c 95 145 24 1.5 1 73.4 73.4 0 0 6700 8900 28.3 103.5 136.5 1.5 1.32
7020 100 150 24 1.5 1 67.4 70.6 0 0 4700 5900 48.1 108.5 141.5 1.5 1.37
7020b 100 150 24 1.5 1 61.2 63.6 0 0 3500 4700 64.4 108.5 141.5 1.5 1.37
7020c 100 150 24 1.5 1 75.3 77.2 0 0 6500 8600 28.7 108.5 141.5 1.5 1.37
7021 105 160 26 2 1 79.8 81.9 0 0 4400 5500 51.8 115 150 2 1.73
7021b 105 160 26 2 1 71.4 73.8 0 0 3300 4400 68.6 115 150 2 1.73
7021c 105 160 26 2 1 87.8 89.6 0 0 6000 8000 31 115 150 2 1.73
7022 110 170 28 2 1 91.9 92.8 0 0 4200 5200 54.4 120 160 2 2.14
7022b 110 170 28 2 1 82.3 83.7 0 0 3100 4200 72.7 120 160 2 2.14
7022c 110 170 28 2 1 101 101 0 0 5800 7700 32.8 120 160 2 2.14
7024 120 180 28 2 1 96.6 103 0 0 3900 4900 57.3 130 170 2 2.27
7024b 120 180 28 2 1 86.4 93 0 0 2900 3900 76.9 130 170 2 2.27
7024c 120 180 28 2 1 106 113 0 0 5400 7100 34.1 130 170 2 2.27
7200 10 30 9 0.6 0.3 4.65 2.2 5.4 2.75 29000 37000 10.4 14.5 25.5 0.6 0.031
7200b 10 30 9 0.6 0.3 4.3 2 4.95 2.5 22000 29000 13.1 14.5 25.5 0.6 0.031
7200с 10 30 9 0.6 0.3 5 2.35 5.8 2.95 40000 54000 7.2 14.5 25.5 0.6 0.031
7201 12 32 10 0.6 0.3 7.45 3.65 8 4.05 27000 34000 11.4 16.5 27.5 0.6 0.038
7201b 12 32 10 0.6 0.3 6.95 3.4 7.4 3.75 20000 27000 14.2 16.5 27.5 0.6 0.038
7201c 12 32 10 0.6 0.3 7.9 3.85 8.5 4.3 38000 50000 7.9 16.5 27.5 0.6 0.038
7202 15 35 11 0.6 0.3 8.1 4.25 8.1 4.25 24000 29000 12.9 19.5 30.5 0.6 0.048
7202b 15 35 11 0.6 0.3 7.45 3.95 7.45 3.95 18000 24000 16.2 19.5 30.5 0.6 0.048
7202c 15 35 11 0.6 0.3 8.65 4.55 8.65 4.55 33000 43000 8.9 19.5 30.5 0.6 0.048
7203 17 40 12 0.6 0.3 10.2 5.5 10.2 5.5 21000 26000 14.4 21.5 35.5 0.6 0.07
7203b 17 40 12 0.6 0.3 9.35 5.05 9.35 5.05 16000 21000 18.2 21.5 35.5 0.6 0.07
7203c 17 40 12 0.6 0.3 10.9 5.9 10.9 5.9 29000 38000 9.9 21.5 35.5 0.6 0.07
7204 20 47 14 1 0.6 14.5 8.4 15.4 9.15 17000 22000 17 25.5 41.5 1 0.112
7204b 20 47 14 1 0.6 13.3 7.7 14.1 8.4 13000 17000 21.5 25.5 41.5 1 0.112
7204C 20 47 14 1 0.6 15.5 9 16.5 9.8 24000 32000 11.6 25.5 41.5 1 0.112
7205 25 52 15 1 0.6 15.3 9.5 16.2 10.3 15000 19000 18.8 30.5 46.5 1 0.135
7205b 25 52 15 1 0.6 14 8.7 14.7 9.4 12000 15000 23.9 30.5 46.5 1 0.135
7205с 25 52 15 1 0.6 16.6 10.2 17.5 11.1 21000 28000 12.7 30.5 46.5 1 0.135
7206 30 62 16 1 0.6 21.3 13.7 22.5 14.8 13000 16000 21.5 35.5 56.5 1 0.208
7206b 30 62 16 1 0.6 19.4 12.5 20.5 13.6 9600 13000 27.6 35.5 56.5 1 0.208
7206с 30 62 16 1 0.6 23 14.7 24.3 16 18000 24000 14.3 35.5 56.5 1 0.208
7207 35 72 17 1.1 0.6 28.1 18.6 29.7 20.2 11000 14000 24.2 42 65 1 0.295
7207b 35 72 17 1.1 0.6 25.6 17 27 18.5 8300 11000 31.4 42 65 1 0.295
7207c 35 72 17 1.1 0.6 30.4 20.1 32.1 21.7 15000 20000 15.8 42 65 1 0.295
7208 40 80 18 1.1 0.6 33.6 23.3 35.3 25.1 10000 12000 26.3 47 73 1 0.382
7208b 40 80 18 1.1 0.6 30.6 21.3 32.1 23 7500 10000 34.2 47 73 1 0.382
7208с 40 80 18 1.1 0.6 36.4 25.2 38.2 27.1 14000 18000 17 47 73 1 0.382
7209 45 85 19 1.1 0.6 37.7 26.6 39.6 28.6 9400 12000 28 52 78 1 0.43
7209b 45 85 19 1.1 0.6 34.3 24.3 36.1 26.1 7000 9400 36.4 52 78 1 0.43
7209с 45 85 19 1.1 0.6 40.8 28.7 42.9 30.9 13000 17000 18.1 52 78 1 0.43
7210 50 90 20 1.1 0.6 39.4 29.4 41.3 31.5 8500 11000 30.4 57 83 1 0.485
7210b 50 90 20 1.1 0.6 35.7 26.7 37.4 28.6 6400 8500 39.6 57 83 1 0.485
7210c 50 90 20 1.1 0.6 42.8 31.8 44.8 34.1 12000 16000 19.4 57 83 1 0.485
7211 55 100 21 1.5 1 48.7 37.1 51 39.8 7600 9500 33.3 63.5 91.5 1.5 0.635
7211b 55 100 21 1.5 1 44.1 33.8 46.2 36.2 5700 7600 43.6 63.5 91.5 1.5 0.635
7211c 55 100 21 1.5 1 52.9 40.2 55.4 43.1 11000 14000 21.1 63.5 91.5 1.5 0.635
7212 60 110 22 1.5 1 58.9 45.7 61.7 49 6900 8600 36.1 68.5 101.5 1.5 0.82
7212b 60 110 22 1.5 1 53.4 41.6 55.9 44.6 5100 6900 47.5 68.5 101.5 1.5 0.82
7212c 60 110 22 1.5 1 64 49.5 67 53 9500 13000 22.7 68.5 101.5 1.5 0.82
7213 65 120 23 1.5 1 67.3 54.2 70.2 57.8 6400 8000 38.2 73.5 111.5 1.5 1.02
7213b 65 120 23 1.5 1 60.9 49.2 63.6 52.6 4800 6400 50.3 73.5 111.5 1.5 1.02
7213c 65 120 23 1.5 1 73.1 58.7 76.3 62.6 8900 12000 23.9 73.5 111.5 1.5 1.02
7214 70 125 24 1.5 1 69.8 55.6 76.3 63.5 6100 7600 40.2 78.5 116.5 1.5 1.12
7214b 70 125 24 1.5 1 63.2 50.6 69.1 57.8 4600 6100 52.9 78.5 116.5 1.5 1.12
7214c 70 125 24 1.5 1 75.9 60.2 83 68.8 8400 11000 25.1 78.5 116.5 1.5 1.12
7215 75 130 25 1.5 1 79.2 65.2 82.7 69.5 5800 7200 42.1 83.5 121.5 1.5 1.23
7215b 75 130 25 1.5 1 71.7 59.3 74.9 63.3 4300 5800 55.5 83.5 121.5 1.5 1.23
7215c 75 130 25 1.5 1 86.1 70.6 89.9 75.3 8000 11000 26.2 83.5 121.5 1.5 1.23
7216 80 140 26 2 1 85.3 71.5 89 76.2 5400 6700 44.8 90 130 2 1.5
7216b 80 140 26 2 1 77.1 65 80.5 69.3 4000 5400 59.2 90 130 2 1.5
7216c 80 140 26 2 1 92.8 77.5 96.9 82.7 7500 9900 27.7 90 130 2 1.5
7217 85 150 28 2 1 98.6 83.6 103 89.2 5000 6300 47.9 95 140 2 1.87
7217b 85 150 28 2 1 89.2 76 93.1 81.1 3800 5000 63.3 95 140 2 1.87
7217c 85 150 28 2 1 107 90.6 112 96.6 7000 9200 29.7 95 140 2 1.87
7218 90 160 30 2 1 113 96.7 118 103 4700 5900 51.1 100 150 2 2.3
7218b 90 160 30 2 1 102 88 107 93.8 3500 4700 67.4 100 150 2 2.3
7218c 90 160 30 2 1 123 105 128 112 6500 8600 31.7 100 150 2 2.3
7219 95 170 32 2.1 1.1 122 103 128 111 4400 5500 54.3 107 158 2 2.78
7219b 95 170 32 2.1 1.1 111 94 116 101 3300 4400 71.6 107 158 2 2.78
7219c 95 170 32 2.1 1.1 133 112 139 120 6100 8100 33.8 107 158 2 2.78
7220 100 180 34 2.1 1.1 137 117 144 126 4100 5200 57.7 112 168 2 3.32
7220b 100 180 34 2.1 1.1. 124 107 130 115 3100 4200 76.2 112 168 2 3.32
7220c 100 180 34 2.1 1.1 149 127 156 136 5700 7600 35.9 112 168 2 3.32
7221 105 190 36 2.1 1.1 149 132 0 0 3900 4900 61 117 178 2 3.95
7221b 105 190 36 2.1 1.1 135 121 0 0 2900 3900 80.5 117 178 2 3.95
7221c 105 190 36 2.1 1.1 162 143 0 0 5400 7200 38 117 178 2 3.95
7222 110 200 38 2.1 1.1 162 148 0 0 3700 4600 64.3 122 188 2 4.65
7222b 110 200 38 2.1 1.1 147 135 0 0 2800 3700 84.9 122 188 2 4.65
7222c 110 200 38 2.1 1.1 176 160 0 0 5100 6800 40 122 188 2 4.65
7224 120 215 40 2.1 1.1 174 166 0 0 3400 4300 68.5 132 203 2 5.49
7224b 120 215 40 2.1 1.1 158 151 0 0 2600 3400 90.3 132 203 2 5.49
7224c 120 215 40 2.1 1.1 190 180 0 0 4800 6300 42.5 132 203 2 5.49
7300 10 35 11 0.6 0.3 8.5 3.75 9.3 4.3 27000 33000 12 14.5 30.5 0.6 0.054
7301 12 37 12 1 0.6 10.2 4.6 11.2 5.25 24000 31000 13.1 17.5 31.5 1 0.065
7302 15 42 13 1 0.6 12.5 6.45 13.4 7.2 20000 25000 15 20.5 36.5 1 0.088
7303 17 47 14 1 0.6 14.9 7.9 16 8.75 18000 23000 16.5 22.5 41.5 1 0.12
7303b 17 47 14 1 0.6 13.8 7.3 14.8 8.1 14000 18000 20.8 22.5 41.5 1 0.12
7303c 17 47 14 1 0.6 15.8 8.4 15.8 8.4 25000 33000 11.4 22.5 41.5 1 0.12
7304 20 52 15 1.1 0.6 17.4 9.4 18.7 10.4 17000 21000 17.9 27 45 1 0.15
7304b 20 52 15 1.1 0.6 16.2 8.7 17.3 9.65 13000 17000 22.6 27 45 1 0.15
7304C 20 52 15 1.1 0.6 18.5 9.95 19.9 11.1 23000 31000 12.3 27 45 1 0.15
7305 25 62 17 1.1 0.6 24.8 14.4 26.4 15.8 14000 17000 21.1 32 55 1 0.243
7305b 25 62 17 1.1 0.6 22.9 13.3 24.4 14.6 10000 14000 26.8 32 55 1 0.243
7305c 25 62 17 1.1 0.6 26.4 15.3 28.1 16.8 19000 25000 14.3 32 55 1 0.243
7306 30 72 19 1.1 0.6 30.1 18.9 31.9 20.6 12000 14000 24.5 37 65 1 0.362
7306b 30 72 19 1.1 0.6 27.6 17.4 29.3 19 8700 12000 31.3 37 65 1 0.362
7306c 30 72 19 1.1 0.6 32.3 20.3 34.2 22.1 16000 21000 16.5 37 65 1 0.362
7307 35 80 21 1.5 1 35.4 22 39.9 26.4 10000 13000 27.4 43.5 71.5 1.5 0.475
7307b 35 80 21 1.5 1 32.5 20.2 36.6 24.3 7700 10000 35 43.5 71.5 1.5 0.475
7307c 35 80 21 1.5 1 37.9 23.6 42.8 28.3 14000 19000 18.3 43.5 71.5 1.5 0.475
7308 40 90 23 1.5 1 43.2 27.4 44.8 32.9 9200 12000 30.3 48.5 81.5 1.5 0.657
7308b 40 90 23 1.5 1 39.7 25.2 48.8 30.3 6900 9200 38.8 48.5 81.5 1.5 0.657
7308с 40 90 23 1.5 1 46.3 29.4 52.3 35.3 13000 17000 20.2 48.5 81.5 1.5 0.657
7309 45 100 25 1.5 1 55.1 37.1 58.4 40.4 8200 10000 33.6 53.5 91.5 1.5 0.875
7309b 45 100 25 1.5 1 50.6 34.1 53.6 37.2 6200 8200 43.1 53.5 91.5 1.5 0.875
7309с 45 100 25 1.5 1 59.2 39.7 62.7 43.4 11000 15000 22.3 53.5 91.5 1.5 0.875
7310 50 110 27 2 1 70.1 48.1 74.3 52.5 7300 9100 37.2 60 100 2 1.14
7310b 50 110 27 2 1 64.4 44.3 68.2 48.3 5500 7300 47.9 60 100 2 1.14
7310c 50 110 27 2 1 75.1 51.6 79.6 56.2 10000 13000 24.5 60 100 2 1.14
7311 55 120 29 2 1 80.9 56.5 85.8 61.7 6700 8400 40.2 65 110 2 1.45
7311b 55 120 29 2 1 74.3 52 78.7 56.7 5000 6700 51.8 65 110 2 1.45
7311c 55 120 29 2 1 86.8 60.6 91.9 66.1 9300 12000 26.4 65 110 2 1.45
7312 60 130 31 2.1 1.1 92.5 65.6 98.1 71.6 6200 7700 43.2 72 118 2 1.81
7312b 60 130 31 2.1 1.1 84.9 60.3 90 65.8 4600 6200 55.8 72 118 2 1.81
7312c 60 130 31 2.1 1.1 99.2 70.3 105 76.7 8600 11000 28.4 72 118 2 1.81
7313 65 140 33 2.1 1.1 105 75.3 111 82.2 5800 7200 46.3 77 128 2 2.22
7313b 65 140 33 2.1 1.1 96.1 69.3 102 75.6 4300 5800 59.7 77 128 2 2.22
7313c 65 140 33 2.1 1.1 112 80.7 119 88.1 8000 11000 30.3 77 128 2 2.22
7314 70 150 35 2.1 1.1 118 85.8 125 93.6 5400 6700 49.3 82 138 2 2.7
7314b 70 150 35 2.1 1.1 108 78.9 114 86 4000 5400 63.7 82 138 2 2.7
7314c 70 150 35 2.1 1.1 126 91.9 134 100 7500 9900 32.2 82 138 2 2.7
7315 75 160 37 2.1 1.1 128 97 136 106 5000 6300 52.4 87 148 2 3.15
7315b 75 160 37 2.1 1.1 118 89.2 125 97.3 3800 5000 67.8 87 148 2 3.15
7315c 75 160 37 2.1 1.1 137 104 146 113 7000 9200 34.2 87 148 2 3.15
7316 80 170 39 2.1 1.1 139 109 147 119 4700 5900 55.6 92 158 2 3.85
7316b 80 170 39 2.1 1.1 127 100 135 109 3500 4700 71.9 92 158 2 3.85
7316c 80 170 39 2.1 1.1 149 117 158 127 6500 8600 36.2 92 158 2 3.85
7317 85 180 41 3 1.1 150 122 159 133 4400 5500 58.8 99 166 2.5 4.53
7317b 85 180 41 3 1.1 137 112 145 122 3300 4400 76.1 99 166 2.5 4.53
7317c 85 180 41 3 1.1 161 130 170 142 6100 8100 38.3 99 166 2.5 4.53
7318 90 190 43 3 1.1 161 135 171 147 4200 5200 61.9 104 176 2.5 5.3
7318b 90 190 43 3 1.1 148 124 156 135 3100 4200 80.2 104 176 2.5 5.3
7318c 90 190 43 3 1.1 173 145 183 158 5800 7700 40.3 104 176 2.5 5.3
7319 95 200 45 3 1.1 172 149 183 162 4000 4900 65.1 109 186 2.5 6.12
7319b 95 200 45 3 1.1 158 137 167 149 3000 4000 84.4 109 186 2.5 6.12
7319c 95 200 45 3 1.1 185 160 196 174 5500 7300 42.3 109 186 2.5 6.12
7320 100 215 47 3 1.1 184 161 207 194 3600 4600 69.4 114 201 2.5 7.53
7320b 100 215 47 3 1.1 168 148 190 178 2700 3600 90.2 114 201 2.5 7.53
7320c 100 215 47 3 1.1 197 173 222 208 5000 6700 44.8 114 201 2.5 7.53
7321 105 225 49 3 1.1 208 193 0 0 3500 4400 72.1 119 211 2.5 8.62
7321b 105 225 49 3 1.1 191 177 0 0 2600 3500 93.7 119 211 2.5 8.62
7321c 105 225 49 3 1.1 223 207 0 0 4800 6400 46.6 119 211 2.5 8.62
7322 110 240 50 3 1.1 232 226 0 0 3200 4000 76.4 124 226 2.5 10.1
7322b 110 240 50 3 1.1 213 208 0 0 2400 3200 99.6 124 226 2.5 10.1
7322c 110 240 50 3 1.1 249 242 0 0 4500 5900 48.8 124 226 2.5 10.1
7324 120 260 55 3 1.1 246 252 0 0 3000 3700 82.3 134 246 2.5 12.6
7324b 120 260 55 3 1.1 225 231 0 0 2200 3000 107.2 134 246 2.5 12.6
7324c 120 260 55 3 1.1 265 271 0 0 4100 5500 53 134 246 2.5 12.6
7404 20 72 19 1.1 0.6 35.6 19.1 0 0 9600 13000 23.1 27 65 1 0.395
7404c 20 72 19 1.1 0.6 33.5 17.9 0 0 8500 12000 29.2 27 65 1 0.395
7405 25 80 21 1.5 1 39.7 23.2 42.6 25.7 8200 11000 28.4 33.5 71.5 1.5 0.527
7405b 25 80 21 1.5 1 36.9 21.5 39.6 23.9 7300 10000 33.6 33.5 71.5 1.5 0.527
7406 30 90 23 1.5 1 47.6 28.4 51 31.6 7300 9700 29.3 38.5 81.5 1.5 0.686
7406b 30 90 23 1.5 1 44.2 26.4 47.4 29.3 6500 8900 37.3 38.5 81.5 1.5 0.686
7407 35 100 25 1.5 1 60.4 37 64.8 41.1 6500 8600 32.6 43.5 91.5 1.5 0.95
7407b 35 100 25 1.5 1 56.2 34.3 60.2 38.1 5700 7900 41.7 43.5 91.5 1.5 0.95
7408 40 110 27 2 1 69.9 43.5 75 48.4 5900 7900 35.5 50 100 2 1.23
7408b 40 110 27 2 1 64.9 40.4 69.6 44.9 5200 7200 45.4 50 100 2 1.23
7409 45 120 29 2 1 84.9 53.8 91.1 59.8 5400 7100 38.6 55 110 2 1.55
7409b 45 120 29 2 1 78.9 50 84.7 55.5 4800 6600 49.5 55 110 2 1.55
7410 50 130 31 2.1 1.1 97.4 65.3 0 0 4900 6600 41.6 62 118 2 1.92
7410b 50 130 31 2.1 1.1 90.2 60.4 0 0 4400 6000 53.5 62 118 2 1.92
7411 55 140 33 2.1 1.1 118 52.4 0 0 4500 6000 45 67 128 2 2.36
7411b 55 140 33 2.1 1.1 110 76.5 0 0 4000 5500 57.8 67 128 2 2.36
7412 60 150 35 2.1 1.1 129 93.6 0 0 4100 5500 48.5 72 138 2 2.85
7412b 60 150 35 2.1 1.1 119 86.7 0 0 3700 5100 62.6 72 138 2 2.85
7413 65 160 37 2.1 1.1 139 104 0 0 3900 5200 51.4 77 148 2 3.41
7413b 65 160 37 2.1 1.1 129 96.8 0 0 3500 4800 66.3 77 148 2 3.41
7414 70 180 42 3 1.1 149 115 0 0 3500 4600 57.6 84 166 2.5 4.99
7414b 70 180 42 3 1.1 148 119 0 0 3100 4300 74.2 84 166 2.5 4.99
7415 75 190 45 3 1.1 171 141 0 0 3300 4400 61.3 89 176 2.5 5.9
7415b 75 190 45 3 1.1 158 131 0 0 2900 4000 78.9 89 176 2.5 5.9
7416 80 200 48 3 1.1 193 166 0 0 3100 4100 65 94 186 2.5 6
7416b 80 200 48 3 1.1 179 154 0 0 2700 3800 82.6 94 186 2.5 6
7417 85 210 52 4 1.5 204 180 0 0 3000 3900 68.7 103 192 3 8.54
7417b 85 210 52 4 1.5 189 167 0 0 2600 3600 88.1 103 192 3 8.54
7418 90 225 54 4 1.5 216 196 0 0 2800 3700 72.5 108 207 3 11.4
7418b 90 225 54 4 1.5 200 182 0 0 2500 3400 93.1 108 207 3 11.4
7900с 10 22 6 0.3 0.15 3 1.5 0 0 52000 69000 5.1 12.5 19.5 0.3 0.008
7901c 12 24 6 0.3 0.15 3.2 1.7 0 0 48000 62000 5.4 14.5 21.5 0.3 0.01
7902c 15 28 7 0.3 0.15 4.75 2.65 0 0 39000 52000 6.4 17.5 25.5 0.3 0.015
7903c 17 30 7 0.3 0.15 4.35 2.3 0 0 36000 47000 6.7 19.5 27.5 0.3 0.016
7904c 20 37 9 0.3 0.15 7.3 4.55 0 0 30000 39000 8.3 22.5 34.5 0.3 0.035
7905c 25 42 9 0.3 0.15 7.8 5.45 0 0 25000 33000 9.1 27.5 39.5 0.3 0.041
7906c 30 47 9 0.3 0.15 8.3 6.25 0 0 22000 29000 9.7 32.5 44.5 0.3 0.046
7907c 35 55 10 0.6 0.3 12.5 9.7 0 0 19000 25000 11 40 50 0.6 0.074
7908c 40 62 12 0.6 0.3 15.7 12.4 0 0 17000 22000 12.8 45 57 0.6 0.107
7909c 45 68 12 0.6 0.3 16.6 14.1 0 0 15000 20000 13.6 50 63 0.6 0.127
7910c 50 72 12 0.6 0.3 17.4 15.7 0 0 14000 18000 14.2 55 67 0.6 0.128
7911c 55 80 13 1 0.6 19.7 18.5 0 0 13000 17000 15.5 61 74 1 0.178
7912c 60 85 13 1 0.6 23.2 21.8 0 0 12000 16000 16.3 66 79 1 0.187
7913c 65 90 13 1 0.6 20.8 21.2 0 0 11000 15000 16.9 71 84 1 0.205
7914c 70 100 16 1 0.6 29 28.9 0 0 10000 12000 19.4 76 94 1 0.332
7915 75 105 16 1 0.6 29.4 30.5 0 0 9300 12000 20.1 81 99 1 0.35
7916c 80 110 16 1 0.6 29.8 31.6 0 0 8800 11000 20.7 86 104 1 0.368
7917c 85 120 18 1.1 0.6 38.9 40.6 0 0 8100 11000 22.7 92 113 1 0.523
7918c 90 125 18 1.1 0.6 39.6 42.6 0 0 7800 10000 23.4 97 118 1 0.551
7919c 95 130 18 1.1 0.6 40.2 44.1 0 0 7400 9800 24.1 102 123 1 0.574
7920c 100 140 20 1.1 0.6 55.6 58.5 0 0 7000 9200 26.1 107 133 1 0.773
7921c 105 145 20 1.1 0.6 56.7 61.5 0 0 6700 8800 26.7 112 138 1 0.81
7922c 110 150 20 1.1 0.6 57.7 64.4 0 0 6400 8500 27.4 117 143 1 0.84
7924c 120 165 22 1.1 0.6 71.7 81.2 0 0 5900 7800 30.1 127 158 1 1.15
ACH006C 30 55 13 1 0.6 12.6 9.55 0 0 20000 26000 12.2 36 49 1 0.122
ACH007C 35 62 14 1 0.6 13.3 10.9 0 0 18000 23000 13.5 41 56 1 0.162
ACH008C 40 68 15 1 0.6 13.9 12.2 0 0 16000 21000 14.7 46 62 1 0.203
ACH009C 45 75 16 1 0.6 15.5 14 0 0 14000 19000 16 51 69 1 0.258
ACH010C 50 80 16 1 0.6 16.1 15.5 0 0 13000 17000 16.7 56 74 1 0.279
ACH011C 55 90 18 1.1 0.6 20 19.5 0 0 12000 16000 18.7 62 83 1 0.413
ACH012C 60 95 18 1.1 0.6 20.8 21.2 0 0 11700 15000 19.4 67 88 1 0.442
ACH013C 65 100 18 1.1 0.6 21.5 22.6 0 0 10100 14000 20 72 93 1 0.471
ACH014C 70 110 20 1.1 0.6 29.4 30.5 0 0 9300 13000 22.1 77 103 1 0.642
ACH015C 75 115 20 1.1 0.6 29.8 31.6 0 0 8800 12000 22.7 82 108 1 0.677
ACH016C 80 125 22 1.1 0.6 34.9 37.7 0 0 8100 11000 24.7 87 118 1 0.915
ACH017C 85 130 22 1.1 0.6 35.4 38.9 0 0 7800 10000 25.4 92 123 1 0.959
ACH018C 90 140 24 1.5 1 46.5 51.3 0 0 7300 9600 27.4 98.5 131.5 1.5 1.23
ACH019C 95 145 24 1.5 1 47.2 53.2 0 0 7000 9200 28.1 103.5 136.5 1.5 1.28
ACH020C 100 150 24 1.5 1 47.9 54.9 0 0 6700 8800 28.7 108.5 141.5 1.5 1.34
ACH021C 105 160 26 2 1 54.4 63.1 0 0 6300 8300 30.7 115 150 2 1.7
ACH022C 110 170 28 2 1 61.3 71.9 0 0 6000 7900 32.7 120 160 2 2.13
ACH024C 120 180 28 2 1 63.1 76.5 0 0 5600 7400 34.1 130 170 2 2.29
ACH910C 50 72 12 0.6 0.3 13.2 12.8 0 0 14000 18000 14.2 55 67 0.6 0.139
ACH911C 55 80 13 1 0.6 14.2 14.6 0 0 13000 17000 15.5 61 74 1 0.195
ACH912C 60 85 13 1 0.6 13.9 14.5 0 0 12000 16000 16.2 66 79 1 0.209
ACH913C 65 90 13 1 0.6 14.3 15.4 0 0 11000 15000 16.9 71 84 1 0.223
ACH914C 70 100 16 1 0.6 18 19.5 0 0 10000 12000 19.4 76 94 1 0.369
ACH915C 75 105 16 1 0.6 18.5 20.7 0 0 9300 12000 20.1 81 99 1 0.391
ACH916C 80 110 16 1 0.6 18.9 21.8 0 0 8800 11000 20.7 86 104 1 0.412
ACH917C 85 120 18 1.1 0.6 22.7 26.1 0 0 8100 11000 22.7 92 113 1 0.586
ACH918C 90 125 18 1.1 0.6 23.3 27.6 0 0 7800 10000 23.4 97 118 1 0.615
ACH919C 95 130 18 1.1 0.6 23.9 29.1 0 0 7400 9800 24.1 102 123 1 0.644
ACH920C 100 140 20 1.1 0.6 33.7 40.4 0 0 7000 9200 26.1 107 133 1 0.869
ACH921C3 105 145 20 1.1 0.6 34.6 42.6 0 0 6700 8800 26.7 112 138 1 0.907
ACH922C 110 150 20 1.1 0.6 34.9 43.7 0 0 6400 8500 27.4 117 143 1 0.942
ACH924C 120 165 22 1.1 0.6 40.8 51.9 0 0 5900 7800 30.1 127 158 1 1.29
