Модель: Соответствующий угловой контактный шарик подшипники
Марка продукта: MBY
Количество:
Запрос цены Добавить в корзину

Подходящие радиально-упорные шарикоподшипники

Описание продукта
Подшипники MBY® Angular Contact Balling имеют гоночные дорожки во внутренних и внешних кольцах, которые смещены по отношению друг к другу в направлении оси подшипника. Эти подшипники предназначены для размещения комбинированных нагрузок и достижения высоких скоростей. Угол контакта α определяется как угол между линией, соединяющей точки контакта мяча и гоночные трассы в радиальной плоскости, и линии, перпендикулярной оси подшипника. Нагрузка, несущая способность угловых контактных шариков, увеличивается с увеличением угла контакта. Угловые контактные шарики обычно используются парами или даже больше с проставками.

MBY® предлагает комплексные диапазоны угловых контактных шариков, которые доступны в:
-     Одиночная ряд и двойная ряд
-     Открытые и запечатанные типы
-     Угол контакта 15, 30 или 40 градусов
-     Хромированная сталь, керамика или гибридные материалы
-     Полиамид, стальная и латунная клетка

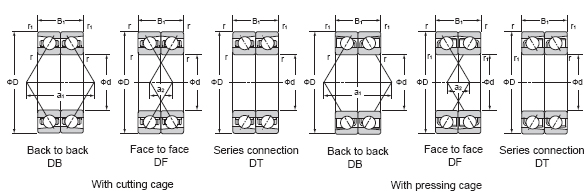

52
Примечание:Проведите влево или вправо, чтобы просмотреть полный стол!
Несущий Граница Dimensions Базовый Нагрузка Рейтинг Ограничение Скорость1) Расстояние из  Плечо  Масса
Designation2) (мм) ( кН ) (RPM) работающий точки Dimensions  (кг)


С резка клетка
(мм) (мм)
Назад к назад Лицо к лицо Серии d D B1 r r1 Cr Cили же Смазка Масло a1 a2 da db Da Db ra rb Примерно
ДБ Дф связь (мин.) (мин.) (мин.) (мин.) (Максимум.) (Максимум.) (Максимум.) (Максимум.)


Дт







7000bdb 7000bdf 7000bdt 10 26 16 0.3 0.15 7.55 4.35 20000 27000 23.1 7.1 12.5 0 23.5 24.8 0.3 0.15 0.042
7000cdb 7000cdf 7000cdt 10 26 16 0.3 0.15 8.6 4.95 37000 50000 12.7 3.3 12.5 0 23.5 24.8 0.3 0.15 0.042
7000 дБ 7000df 7000dt 10 26 16 0.3 0.15 8.1 4.65 27000 34000 18.2 2.2 12.5 0 23.5 24.8 0.3 0.15 0.042
7001bdb 7001bdf 7001bdt 12 28 16 0.3 0.15 8.1 5.05 18000 24000 25.2 9.2 14.5 0 25.5 26.8 0.3 0.15 0.048
7001CDB 7001CDF 7001cdt 12 28 16 0.3 0.15 9.4 5.85 32000 43000 13.5 2.5 14.5 0 25.5 26.8 0.3 0.15 0.048
7001db 7001df 7001dt 12 28 16 0.3 0.15 8.8 5.45 23000 29000 19.9 3.9 14.5 0 25.5 26.8 0.3 0.15 0.048
7002bdb 7002bdf 7002bdt 15 32 18 0.3 0.15 9.05 6.3 15000 20000 29.2 11.1 17.5 0 29.5 30.8 0.3 0.15 0.07
7002CDB 7002CDF 7002cdt 15 32 18 0.3 0.15 10.7 7.4 28000 37000 15.3 2.7 17.5 0 29.5 30.8 0.3 0.15 0.068
7002db 7002df 7002dt 15 32 18 0.3 0.15 9.95 6.85 20000 26000 22.6 4.6 17.5 0 29.5 30.8 0.3 0.15 0.068
7003bdb 7003bdf 7003bdt 17 35 20 0.3 0.15 9.9 7.5 14000 18000 32.2 12.2 19.5 0 32.5 33.8 0.3 0.15 0.096
7003CDB 7003CDF 7003cdt 17 35 20 0.3 0.15 11.9 8.95 25000 33000 17.1 2.9 19.5 0 32.5 33.8 0.3 0.15 0.087
7003db 7003df 7003dt 17 35 20 0.3 0.15 10.9 8.25 18000 23000 25.3 5.3 19.5 0 32.5 33.8 0.3 0.15 0.09
7004bdb 7004bdf 7004bdt 20 42 24 0.6 0.3 15.2 11.1 11000 15000 38.4 14.4 24.5 0 37.5 39.5 0.3 0.3 0.158
7004cdb 7004CDF 7004cdt 20 42 24 0.6 0.3 18 13.2 21000 28000 20.4 3.6 24.5 0 37.5 39.5 0.3 0.3 0.158
7004db 7004df 7004dt 20 42 24 0.6 0.3 16.7 12.2 15000 19000 30.2 6.2 24.5 0 47.5 39.5 0.3 0.3 0.158
7005bdb 7005bdf 7005bdt 25 47 24 0.6 0.3 16.6 13.4 10000 13000 42.3 18.3 29.5 0 42.5 44.5 0.3 0.3 0.182
7005CDB 7005CDF 7005cdt 25 47 24 0.6 0.3 20.0. 16 18000 24000 21.7 2.3 29.5 0 42.5 44.5 0.3 0.3 0.182
7005db 7005df 7005dt 25 47 24 0.6 0.3 18.3 14.8 13000 17000 32.9 8.9 29.5 0 42.5 44.5 0.3 0.3 0.182
7006bdb 7006df 7006dt 30 55 26 1 0.6 23.6 20.2 11000 14000 37.5 11.5 35.5 0 49.5 50.5 1 0.5 0.266
7007bdb 7007bdf 7007bdt 35 62 28 1 0.6 25.7 22.8 7400 9900 55.1 27.1 40.5 0 56.5 57.5 1 0.5 0.341
7007cdb 7007cdf 7007cdt 35 62 28 1 0.6 31 27.4 13000 18000 27 1 40.5 0 56.5 57.5 1 0.5 0.338
7007db 7007df 7007dt 35 62 28 1 0.6 28.4 25.2 9800 12000 42.3 14.3 40.5 0 56.5 57.5 1 0.5 0.339
7008bdb 7008bdf 7008bdt 40 68 30 1 0.6 27.4 26.4 6600 8900 60.5 30.5 45.5 0 62.5 63.5 1 0.5 0.424
7008cdb 7008CDF 7008cdt 40 68 30 1 0.6 33.4 31.8 12000 16000 29.5 0.5 45.5 0 62.5 63.5 1 0.5 0.417
7008db 7008df 7008dt 40 68 30 1 0.6 30.4 29.2 8900 11000 46.3 16.3 45.5 0 62.5 63.5 1 0.5 0.419
7009bdb 7009bdf 7009bdt 45 75 32 1 0.6 32.5 32 6000 8000 66.3 34.3 50.5 0 69.5 70.5 1 0.5 0.546
7009cdb 7009cdf 7009cdt 45 75 32 1 0.6 39.6 38.5 11000 15000 32.1 0.1 50.5 0 69.5 70.5 1 0.5 0.531
7009db 7009df 7009dt 45 75 32 1 0.6 36.2 35.4 8000 10000 50.7 18.7 50.5 0 69.5 70.5 1 0.5 0.531
7010bdb 7010bdf 7010bdt 50 80 32 1 0.6 34.5 36.2 5500 7400 70.5 38.5 55.5 0 74.5 75.5 1 0.5 0.595
7010cdb 7010CDF 7010cdt 50 80 32 1 0.6 42.2 43.9 10000 13000 33.6 1.6 55.5 0 74.5 75.5 1 0.5 0.576
7010db 7010df 7010DT 50 80 32 1 0.6 38.4 40.2 7300 9200 53.8 21.8 55.5 0 74.5 75.5 1 0.5 0.576
7011bdb 7011bdf 7011bdt 55 90 36 1.1 0.6 45.4 47.5 5000 6600 78.8 42.8 62 0 83 85.5 1 0.6 0.862
7011CDB 7011CDF 7011cdt 55 90 36 1.1 0.6 55.4 57.3 9100 12000 37.4 1.4 62 0 83 85.5 1 0.6 0.849
7011db 7011df 7011dt 55 90 36 1.1 0.6 50.5 52.5 6600 8300 59.9 23.9 62 0 83 85.5 1 0.6 0.85
7012bdb 7012bdf 7012bdt 60 95 36 1.1 0.6 46.4 50.7 4600 6200 83 47 67 0 88 90.5 1 0.6 0.921
7012CDB 7012CDF 7012cdt 60 95 36 1.1 0.6 56.9 61.3 8500 11000 38.8 2.8 67 0 88 90.5 1 0.6 0.892
7012db 7012df 7012dt 60 95 36 1.1 0.6 51.8 56.1 6200 7700 62.8 26.8 67 0 88 90.5 1 0.6 0.894
7013bdb 7013bdf 7013bdt 65 100 36 1.1 0.6 48.9 56.6 4300 5800 87.6 51.6 72 0 93 95.5 1 0.6 0.983
7013cdb 7013CDF 7013cdt 65 100 36 1.1 0.6 60.2 68.7 7900 11000 40.2 4.2 72 0 93 95.5 1 0.6 0.964
7013db 7013df 7013dt 65 100 36 1.1 0.6 54.7 62.8 5800 7200 65.9 29.9 72 0 93 95.5 1 0.6 0.965
7014bdb 7014bdf 7014bdt 70 110 40 1.1 0.6 62.1 71.1 4000 5300 95.5 55.5 77 0 103 103 1 0.6 1.32
7014CDB 7014CDF 7014cdt 70 110 40 1.1 0.6 76.2 86 7300 9700 44.1 4.1 77 0 103 103 1 0.6 1.32
7014db 7014df 7014dt 70 110 40 1.1 0.6 69.3 78.7 5300 6600 72 32 77 0 103 103 1 0.6 1.32
7015bdb 7015bdf 7015bdt 75 115 40 1.1 0.6 63.5 75.2 3800 5000 99.7 59.7 82 0 108 110.5 1 0.6 1.38
7015CDB 7015CDF 7015cdt 75 115 40 1.1 0.6 78 91.3 6900 9200 45.5 5.5 82 0 108 110.5 1 0.6 1.38
7015db 7015df 7015dt 75 115 40 1.1 0.6 70.9 83.4 5000 6300 74.9 34.9 82 0 108 110.5 1 0.6 1.38
7016bdb 7016bdf 7016bdt 80 125 44 1.1 0.6 77.7 91.3 3500 4600 108 64 87 0 118 120.5 1 0.6 1.86
7016CDB 7016CDF 7016cdt 80 125 44 1.1 0.6 95.3 111 6400 8500 49.5 5.5 87 0 118 120.5 1 0.6 1.86
7016db 7016df 7016dt 80 125 44 1.1 0.6 86.7 101 4600 5800 81.2 37.2 87 0 118 120.5 1 0.6 1.86
7017bdb 7017bdf 7017bdt 85 130 44 1.1 0.6 79.3 96.7 3000 4400 113 69 92 0 123 125.5 1 0.6 1.94
7017cdb 7017CDF 7017cdt 85 130 44 1.1 0.6 97.6 117 6000 8000 51.1 7.1 92 0 123 125.5 1 0.6 1.94
7017db 7017df 7017dt 85 130 44 1.1 0.6 88.6 107 4400 5500 84.7 40.7 92 0 123 125.5 1 0.6 1.94
7018bdb 7018bdf 7018bdt 90 140 48 1.5 1 94.9 114 3100 4100 120.5 72.5 98.5 0 131.5 134.5 1.5 0.8 2.52
7018CDB 7018CDF 7018cdt 90 140 48 1.5 1 116 138 5700 7500 54.8 6.8 98.5 0 131.5 134.5 1.5 0.8 2.52
7018db 7018df 7018dt 90 140 48 1.5 1 106 127 4100 5100 90.4 42.4 98.5 0 131.5 134.5 1.5 0.8 2.52
7019bdb 7019bdf 7019bdt 95 145 48 1.5 1 96.8 121 2900 3900 126.4 78.4 103.5 0 136.5 139.5 1.5 0.8 2.64
7019cdb 7019cdf 7019cdt 95 145 48 1.5 1 119 147 5300 7100 56.7 8.7 103.5 0 136.5 139.5 1.5 0.8 2.64
7019db 7019df 7019dt 95 145 48 1.5 1 108 134 3900 4800 94.5 46.5 103.5 0 136.5 139.5 1.5 0.8 2.64
7020BDB 7020BDF 7020bdt 100 150 48 1.5 1 99.4 127 2800 3800 128.9 80.9 108.5 0 141.5 144.5 1.5 0.8 2.74
7020CDB 7020CDF 7020CDT 100 150 48 1.5 1 122 154 5200 6900 57.5 9.5 108.5 0 141.5 144.5 1.5 0.8 2.74
7020DB 7020DF 7020DT 100 150 48 1.5 1 111 141 3800 4700 96.2 48.2 108.5 0 141.5 144.5 1.5 0.8 2.74
7021bdb 7021bdf 7021bdt 105 160 52 2 1 116 148 2600 3500 137.2 85.2 115 0 150 154.5 2 1 3.46
7021CDB 7021CDF 7021cdt 105 160 52 2 1 143 179 4800 6400 62 10 115 0 150 154.5 2 1 3.46
7021db 7021df 7021dt 105 160 52 2 1 130 164 3500 4400 103.7 51.7 115 0 150 154.5 2 1 3.46
7022bdb 7022bdf 7022bdt 110 170 56 2 1 134 167 2500 3300 145.5 89.5 120 0 160 164.5 2 1 4.28
7022CDB 7022CDF 7022CDT 110 170 56 2 1 164 203 4600 6100 65.5 9.5 120 0 160 164.5 2 1 4.28
7022DB 7022df 7022dt 110 170 56 2 1 149 186 3300 4200 108.9 52.9 120 0 160 164.5 2 1 4.28
7024bdb 7024bdf 7024bdt 120 180 56 2 1 140 186 2300 3100 153.9 97.9 130 0 170 174.5 2 1 4.54
7024CDB 7024CDF 7024cdt 120 180 56 2 1 173 226 4300 5700 68.2 12.2 130 0 170 174.5 2 1 4.54
7024db 7024df 7024dt 120 180 56 2 1 157 206 4400 5900 114.2 58.2 130 0 170 174.5 2 0.8 4.54
7200bdb 7200bdf 7200bdt 10 30 18 0.6 0.3 6.95 4.05 18000 23000 26.2 8.2 14.5 12.5 25.5 27.5 0.6 0.3 0.062
7200CDB 7200CDF 7200CDT 10 30 18 0.6 0.3 8.1 4.7 32000 43000 14.5 3.5 14.5 12.5 25.5 27.5 0.6 0.3 0.062
7200DB 7200DF 7200DT 10 30 18 0.6 0.3 7.55 4.4 23000 29000 20.8 2.8 14.5 12.5 25.5 27.5 0.6 0.3 0.062
7201bdb 7201bdf 7201bdt 12 32 20 0.6 0.3 11.3 6.8 16000 21000 28.5 8.5 16.5 14.5 27.5 29.5 0.6 0.3 0.076
7201CDB 7201CDF 7201cdt 12 32 20 0.6 0.3 12.8 7.7 30000 40000 15.9 4.1 16.5 14.5 27.5 29.5 0.6 0.3 0.076
7201db 7201df 7201dt 12 32 20 0.6 0.3 12.1 7.25 22000 27000 22.7 2.7 16.5 14.5 27.5 29.5 0.6 0.3 0.076
7202bdb 7202bdf 7202bdt 15 35 22 0.6 0.3 12.1 7.85 14000 19000 32.4 10.4 19.5 17.5 30.5 32.5 0.6 0.3 0.096
7202CDB 7202CDF 7202cdt 15 35 22 0.6 0.3 14.1 9.15 26000 35000 17.8 4.2 19.5 17.5 30.5 32.5 0.6 0.3 0.096
7202db 7202df 7202dt 15 35 22 0.6 0.3 13.2 8.55 19000 24000 25.7 3.7 19.5 17.5 30.5 32.5 0.6 0.3 0.096
7203bdb 7203bdf 7203bdt 17 40 24 0.6 0.3 15.2 10.1 12000 17000 36.3 12.3 21.5 19.5 35.5 37.5 0.6 0.3 0.146
7203CDB 7203CDF 7203cdt 17 40 24 0.6 0.3 17.07 11.8 23000 30000 19.8 4.2 21.5 19.5 35.5 37.5 0.6 0.3 0.144
7203db 7203df 7203dt 17 40 24 0.6 0.3 16.5 11 17000 21000 28.8 4.8 21.5 19.5 35.5 37.5 0.6 0.3 0.144
7204BDB 7204bdf 7204bdt 20 47 28 1 0.6 21.6 15.4 10000 14000 42.9 14.9 25.5 24.5 41.5 42.5 0.5 0.5 0.224
7204CDB 7204CDF 7204cdt 20 47 28 1 0.6 25.2 18 19000 26000 23.2 4.8 25.5 24.5 41.5 42.5 0.5 0.5 0.224
7204db 7204df 7204dt 20 47 28 1 0.6 23.5 16.8 14000 17000 33.9 5.9 25.5 24.5 41.5 42.5 0.5 0.5 0.224
7205bdb 7205bdf 7205bdt 25 52 30 1 0.6 22.7 17.4 9200 12000 47.7 17.7 30.5 29.5 46.5 47.5 0.5 0.5 0.287
7205CDB 7205CDF 7205cdt 25 52 30 1 0.6 26.9 20.5 17000 23000 25.5 4.5 30.5 29.5 46.5 47.5 1 0.5 0.279
7205db 7205df 7205dt 25 52 30 1 0.6 24.9 19 12000 15000 37.5 7.5 30.5 29.5 46.5 47.5 0.5 0.5 0.28
7206bdb 7006bdf 7006bdt 30 55 26 1 0.6 21.3 18.4 8500 11000 48.7 22.7 35.5 0 49.5 50.5 1 0.5 0.266
7206bdb 7206bdf 7206bdt 30 62 32 1 0.6 31.6 25 7700 10000 55.2 23.2 35.5 34.5 56.5 57.5 1 0.5 0.416
7206CDB 7006CDF 7006cdt 30 55 26 1 0.6 25.7 22 16000 21000 24.4 1.6 35.5 0 49.5 50.5 1 0.5 0.266
7206CDB 7206CDF 7206cdt 30 62 32 1 0.6 37.4 29.5 14000 19000 28.5 3.5 35.5 34.5 65 57.5 1 0.5 0.416
7206db 7206df 7206dt 30 62 32 1 0.6 34.7 27.4 10000 13000 43 11 35.5 34.5 56.5 57.5 1 0.5 0.416
7207bdb 7207bdf 7207bdt 35 72 34 1.1 0.6 41.6 34.1 6600 8800 62.7 28.7 42 39.5 65 67.5 1 0.6 0.63
7207cdb 7207CDF 7207cdt 35 72 34 1.1 0.6 49.4 40.2 12000 16000 31.6 2.4 42 39.5 65 67.5 1 0.6 0.622
7207db 7207df 7207dt 35 72 34 1.1 0.6 45.7 37.3 8800 11000 48.5 14.5 42 39.5 65 67.5 1 0.6 0.623
7208bdb 7208bdf 7208bdt 40 80 36 1.1 0.6 49.7 42.7 6000 8000 68.3 32.3 47 44.5 73 75.5 1 0.6 0.764
7208CDB 7208CDF 7208cdt 40 80 36 1.1 0.6 59.1 50.4 11000 15000 34.1 1.9 47 44.5 73 75.5 1 0.6 0.764
7208db 7208df 7208dt 40 80 36 1.1 0.6 54.6 46.7 8000 10000 52.7 16.7 47 44.5 73 75.5 1 0.6 0.764
7209bdb 7209bdf 7209bdt 45 85 38 1.1 0.6 55.8 48.6 5600 7500 72.8 34.8 52 49.5 78 80.5 1 0.6 0.934
7209cdb 7209CDF 7209cdt 45 85 38 1.1 0.6 66.3 57.4 10000 14000 36.2 1.8 52 49.5 78 80.5 1 0.6 0.928
7209db 7209df 7209dt 45 85 38 1.1 0.6 61.3 53.2 7500 9400 56 18 52 49.5 78 80.5 1 0.6 0.921
7210bdb 7210bdf 7210bdt 50 90 40 1.1 0.6 58 53.5 5100 6800 79.2 39.2 57 54.5 83 85.5 1 0.6 1.04
7210cdb 7210CDF 7210cdt 50 90 40 1.1 0.6 69.6 63.6 9400 12000 38.9 1.1 57 54.5 83 85.5 1 0.6 1.02
7210db 7210df 7210DT 50 90 40 1.1 0.6 64 58.7 6800 8500 60.7 20.7 57 54.5 83 85.5 1 0.6 1.02
7211bdb 7211bdf 7211bdt 55 100 42 1.5 1 71.6 67.6 4600 6100 87.3 45.3 63.5 60.5 91.5 94.5 1.5 0.8 1.27
7211CDB 7211CDF 7211cdt 55 100 42 1.5 1 85.9 80.4 8400 11000 42.2 0.2 63.5 60.5 91.5 94.5 1.5 0.8 1.27
7211db 7211df 7211dt 55 100 42 1.5 1 79.1 74.2 6100 7600 66.6 24.6 63.5 60.5 91.5 94.5 1.5 0.8 1.27
7212bdb 7212bdf 7212bdt 60 110 44 1.5 1 86.8 83.3 4100 5500 95 51 68.5 65.5 101.5 104.5 1.5 0.8 1.64
7212CDB 7212CDF 7212cdt 60 110 44 1.5 1 104 99 7500 10000 45.3 1.3 68.5 65.5 101.5 104.5 1.5 0.8 1.64
7212DB 7212df 7212dt 60 110 44 1.5 1 95.7 91.5 5500 6900 72.3 28.3 68.5 65.5 101.5 104.5 1.5 0.8 1.64
7213bdb 7213bdf 7213bdt 65 120 46 1.5 1 99 98.7 3900 5200 100.6 54.6 73.5 70.5 111.5 111.5 1.5 0.8 2.04
7213CDB 7213CDF 7213cdt 65 120 46 1.5 1 119 117 7100 9400 47.8 1.8 73.5 70.5 111.5 111.5 1.5 0.8 2.04
7213db 7213df 7213dt 65 120 46 1.5 1 109 108 5200 6400 76.4 30.4 73.5 70.5 111.5 111.5 1.5 0.8 2.04
7214bdb 7214bdf 7214bdt 70 125 48 1.5 1 103 101 3700 4900 105.8 57.8 78.5 75.5 116.5 116.5 1.5 0.8 2.24
7214CDB 7214CDF 7214cdt 70 125 48 1.5 1 123 120 6700 8900 50.1 2.1 78.5 75.5 116.5 116.5 1.5 0.8 2.24
7214db 7214df 7015cdt 70 125 48 1.5 1 113 111 4900 6100 80.3 32.3 78.5 75.5 116.5 116.5 1.5 0.8 2.24
7215bdb 7215bdf 7215bdt 75 130 50 1.5 1 116 119 3500 4600 111 61 83.5 80.5 121.5 124.5 1.5 0.8 2.46
7215CDB 7215CDF 7215cdt 75 130 50 1.5 1 140 141 6400 8500 52.5 2.5 83.5 80.5 121.5 124.5 1.5 0.8 2.46
7215db 7215df 7215dt 75 130 50 1.5 1 129 130 4600 5800 84.2 34.2 83.5 80.5 121.5 124.5 1.5 0.8 2.46
7216bdb 7216bdf 7216bdt 80 140 52 2 1 125 130 3200 4300 118.5 66.3 90 85.5 13 134.5 2 1 3.26
7216CDB 7216CDF 7216cdt 80 140 52 2 1 151 155 5900 7900 55.5 3.5 90 85.5 0 134.5 2 1 3.2
7216db 7216df 7216dt 80 140 52 2 1 139 143 4300 5400 89.5 37.5 90 85.5 130 134.5 2 1 3.2
7217bdb 7217bdf 7217bdt 85 150 56 2 1 145 152 3000 4000 126.6 70.6 95 90.5 140 144.5 2 1 3.74
7217cdb 7217CDF 7217cdt 85 150 56 2 1 174 181 5500 7400 59.5 3.5 95 90.5 140 144.5 2 1 3.74
7217db 7217df 7217dt 85 150 56 2 1 160 167 4000 5000 95.9 39.9 95 90.5 140 144.5 2 1 3.74
7218bdb 7218bdf 7218bdt 90 160 60 2 1 166 176 2800 3800 134.9 74.9 100 95.5 150 154.5 2 1 5.06
7218CDB 7218CDF 7218cdt 90 160 60 2 1 199 209 5200 6900 63.5 3.5 100 95.5 150 154.5 2 1 1.96
7218db 7218df 7218dt 90 160 60 2 1 183 193 3800 4700 102.2 42.2 100 95.5 150 154.5 2 1 4.97
7219bdb 7219bdf 7219bdt 95 170 64 2.1 1.1 180 188 2700 3500 143.2 79.2 107 102 158 163 2 1 5.56
7219cdb 7219cdf 7219cdt 95 170 64 2.1 1.1 216 224 4900 6500 67.5 3.5 107 102 158 163 2 1 5.56
7219db 7219df 7219dt 95 170 64 2.1 1.1 198 207 3500 4400 108.5 44.5 107 102 158 163 2 1 5.56
7220bdb 7220bdf 7220bdt 100 180 68 2.1 1.1 202 214 2500 3300 152.3 84.3 112 107 168 173 2 1 6.64
7220cdb 7220CDF 7220cdt 100 180 68 2.1 1.1 242 254 4600 6100 71.8 3.8 112 107 168 173 2 1 6.64
7220db 7220df 7220dt 100 180 68 2.1 1.1 223 235 3300 4100 115.4 47.4 112 107 168 173 2 1 6.64
7221bdb 7221bdf 7221bdt 105 190 72 2.1 1.1 220 241 2300 3100 161 89 117 0 178 183 2 1 8.54
7221CDB 7221CDF 7221cdt 105 190 72 2.1 1.1 264 287 4300 5700 75.9 3.9 117 0 178 183 2 1 8.35
7221db 7221df 7221dt 105 190 72 2.1 1.1 243 265 3100 3900 122.1 50.1 117 0 178 183 2 1 8.36
7222BDB 7222BDF 7222bdt 110 200 76 2.1 1.1 238 270 2200 3000 169.7 93.7 122 0 188 193 2 1 10.1
7222CDB 7222CDF 7222CDT 110 200 76 2.1 1.1 286 321 4100 5400 80.1 4.1 122 0 188 193 2 1 9.8
7222DB 7222df 7222dt 110 200 76 2.1 1.1 263 297 3000 3700 128.7 52.7 122 0 188 193 2 1 9.8
7224bdb 7224bdf 7224bdt 120 215 80 2.1 1.1 257 302 2100 2800 180.5 100.5 132 0 203 208 2 1 11
7224CDB 7224CDF 7224cdt 120 215 80 2.1 1.1 308 359 3800 5000 85 5 132 0 203 208 2 1 11
7224db 7224df 7224dt 120 215 80 2.1 1.1 283 332 2700 3400 137 57 132 0 203 208 2 1 11
7300 дБ 7300DF 7300dt 10 35 22 0.6 0.3 13.8 7.55 21000 27000 24 2 14.5 12.5 30.5 32.5 0.6 0.3 0.108
7301DB 7301DF 7301DT 12 37 24 1 0.6 16.6 9.2 20000 24000 26.2 2.2 17.5 16.5 31.5 32.5 1 0.5 0.13
7302db 7302df 7302dt 15 42 26 1 0.6 20.3 12.9 16000 20000 30 4 20.5 19.5 36.5 37.5 1 0.5 0.176
7303bdb 7303bdf 7303bdt 17 47 28 1 0.6 22.5 14.6 11000 15000 41.7 13.7 22.5 21.5 41.5 42.5 1 0.5 0.254
7303CDB 7303CDF 7303cdt 17 47 28 1 0.6 25.7 16.8 20000 27000 22.8 5.2 22.5 21.5 41.5 42.5 1 0.5 0.215
7303db 7303df 7303dt 17 47 28 1 0.6 24.2 15.8 15000 18000 33.1 5.1 22.5 21.5 41.5 42.5 1 0.5 0.248
7304BDB 7304bdf 7304bdt 20 52 30 1.1 0.6 26.3 17.4 10000 13000 45.2 15.2 27 24.5 45 47.5 0.6 0.6 0.326
7304CDB 7304CDF 7304cdt 20 52 30 1.1 0.6 30.1 19.9 18000 24000 24.6 5.4 27 24.5 45 47.5 0.6 0.6 0.319
7304db 7304df 7304dt 20 52 30 1.1 0.6 28.3 18.8 13000 17000 35.8 5.8 27 24.5 45 47.5 0.6 0.6 0.319
7305bdb 7305bdf 7305bdt 25 62 34 1.1 0.6 37.2 26.6 8300 11000 53.5 19.5 32 29.5 55 57.5 1 0.6 0.486
7305CDB 7305CDF 7305cdt 25 62 34 1.1 0.6 42.8 30.6 15000 20000 28.7 5.3 32 29.5 55 57.5 1 0.6 0.486
7305db 7305df 7305dt 25 62 34 1.1 0.6 40.3 28.8 11000 14000 42.1 8.1 32 29.5 55 57.5 1 0.6 0.486
7306bdb 7306bdf 7306bdt 30 72 38 1.1 0.6 44.9 34.7 6900 9200 62.6 24.6 37 34.5 65 67.5 1 0.6 0.724
7306CDB 7306CDF 7306cdt 30 72 38 1.1 0.6 52.5 40.5 13000 17000 32.9 5.1 37 34.5 65 67.5 1 0.6 0.724
7306db 7306df 7306dt 30 72 38 1.1 0.6 48.9 37.8 9200 12000 49 11 37 34.5 65 67.5 1 0.6 0.724
7307bdb 7307bdf 7307bdt 35 80 42 1.5 1 52.7 40.5 6200 8200 70.1 28.1 43.5 40.5 71.5 74.5 1.5 0.8 1.01
7307cdb 7307CDF 7307cdt 35 80 42 1.5 1 61.6 47.2 11000 15000 36.7 5.3 43.5 40.5 71.5 74.5 1.5 0.8 0.995
7307db 7307df 7307dt 35 80 42 1.5 1 57.5 44 8200 10000 54.8 12.8 43.5 40.5 71.5 74.5 1.5 0.8 0.996
7308bdb 7308bdf 7308bdt 40 90 46 1.5 1 64.5 50.5 5500 7400 77.5 31.5 48.5 45.5 81.5 84.5 1.5 0.8 1.31
7308CDB 7308CDF 7308cdt 40 90 46 1.5 1 75.3 58.8 10000 14000 40.4 5.6 48.5 45.5 81.5 84.5 1.5 0.8 1.31
7308db 7308df 7308dt 40 90 46 1.5 1 70.2 54.9 7400 9200 60.5 14.5 48.5 45.5 81.5 84.5 1.5 0.8 1.31
7309bdb 7309bdf 7309bdt 45 100 50 1.5 1 82.1 68.2 4900 6600 86.3 36.3 53.5 50.5 91.5 94.5 1.5 0.8 1.75
7309cdb 7309CDF 7309cdt 45 100 50 1.5 1 96.1 79.5 9000 12000 44.6 5.4 53.5 50.5 91.5 94.5 1.5 0.8 1.75
7309db 7309df 7309dt 45 100 50 1.5 1 89.6 74.2 6600 8200 67.2 17.2 53.5 50.5 91.5 94.5 1.5 0.8 1.75
7310bdb 7310bdf 7310bdt 50 110 54 2 1 105 88.6 4400 5800 95.8 41.8 60 55.5 100 104.5 2 1 2.28
7310cdb 7310CDF 7310cdt 50 110 54 2 1 122 103 8000 11000 49 5 60 55.5 100 104.5 2 1 2.28
7310db 7310df 7310DT 50 110 54 2 1 114 96.3 5800 7300 74.4 20.4 60 55.5 100 104.5 2 1 2.28
7311bdb 7311bdf 7311bdt 55 120 58 2 1 121 104 4000 5400 103.7 45.7 65 60.5 110 114.5 2 1 3.07
7311CDB 7311CDF 7311cdt 55 120 58 2 1 141 121 7400 9800 52.9 5.1 65 60.5 110 114.5 2 1 3.04
7311db 7311df 7311dt 55 120 58 2 1 132 113 5400 6700 80.4 22.4 65 59.5 110 114.5 2 1 3.03
7312bdb 7312bdf 7312bdt 60 130 62 2.1 1.1 138 121 3700 5000 111.6 49.6 72 67 118 123 2 1 3.62
7312CDB 7312CDF 7312cdt 60 130 62 2.1 1.1 161 141 6800 9100 56.7 5.3 72 67 118 123 2 1 3.62
7312DB 7312df 7312dt 60 130 62 2.1 1.1 150 131 5000 6200 86.5 24.5 72 67 118 123 2 1 3.62
7313bdb 7313bdf 7313bdt 65 140 66 2.1 1.1 156 139 3500 4600 119.4 53.4 77 72 128 128 2 1 4.44
7313CDB 7313CDF 7313cdt 65 140 66 2.1 1.1 182 161 6300 8500 60.6 5.4 77 72 128 128 2 1 4.44
7313db 7313df 7313dt 65 140 66 2.1 1.1 170 151 4600 5800 92.5 26.5 77 72 128 128 2 1 4.44
7314bdb 7314bdf 7314bdt 70 150 70 2.1 1.1 175 158 3200 4300 127.3 57.3 82 77 138 138 2 1 5.67
7314CDB 7314CDF 7314cdt 70 150 70 2.1 1.1 205 184 5900 7900 64.5 5.5 82 77 138 138 2 1 5.66
7314db 7314df 7314dt 70 150 70 2.1 1.1 191 172 4300 5400 98.5 28.5 82 77 138 138 2 1 5.67
7315bdb 7315bdf 7315bdt 75 160 74 2.1 1.1 191 178 3000 4000 135.6 61.6 87 82 148 153 2 1 6.91
7315CDB 7315CDF 7315cdt 75 160 74 2.1 1.1 223 208 5500 7400 68.5 5.5 87 82 148 153 2 1 6.81
7315db 7315df 7315dt 75 160 74 2.1 1.1 208 194 4000 5000 104.9 30.9 87 82 148 153 2 1 6.81
7316bdb 7316bdf 7316bdt 80 170 78 2.1 1.1 207 200 2800 3800 143.9 65.9 92 87 158 163 2 1 8.22
7316CDB 7316CDF 7316cdt 80 170 78 2.1 1.1 242 233 5200 6900 72.5 5.5 92 87 158 163 2 1 8.11
7316db 7316df 7316dt 80 170 78 2.1 1.1 226 218 3800 4700 111.2 33.2 92 87 130 163 2 1 8.11
7317bdb 7317bdf 7317bdt 85 180 82 3 1.1 223 223 2700 3500 152.2 70.2 99 92 166 173 2.5 1 9.06
7317cdb 7317CDF 7317cdt 85 180 82 3 1.1 261 261 4900 6500 76.5 5.5 99 92 166 173 2.5 1 9.06
7317db 7317df 7317dt 85 180 82 3 1.1 243 243 3500 4400 117.5 35.5 99 92 166 173 2.5 1 9.06
7318bdb 7318bdf 7318bdt 90 190 86 3 1.1 240 248 2500 3300 160.5 74.5 104 97 176 183 2.5 1 10.6
7318CDB 7318CDF 7318cdt 90 190 86 3 1.1 281 289 4600 6100 80.5 5.5 104 97 176 183 2.5 1 10.6
7318db 7318df 7318dt 90 190 86 3 1.1 261 270 3300 4200 123.9 37.9 104 97 176 183 2.5 1 10.6
7319bdb 7319bdf 7319bdt 95 200 90 3 1.1 256 273 2400 3200 168.8 78.8 109 102 186 193 2.5 1 12.2
7319cdb 7319CDF 7319cdt 95 200 90 3 1.1 300 319 4400 5800 84.5 5.5 109 102 186 193 2.5 1 12.2
7319db 7319df 7319dt 95 200 90 3 1.1 280 298 3200 4000 130.2 40.2 109 102 186 193 2.5 1 12.2
7320bdb 7320bdf 7320bdt 100 215 94 3 1.1 274 297 2200 2900 180.4 86.4 114 107 201 208 2.5 1 15.1
7320cdb 7320CDF 7320cdt 100 215 94 3 1.1 320 346 4000 5300 89.6 4.4 114 107 201 208 2.5 1 15.1
7320db 7320df 7320dt 100 215 94 3 1.1 298 323 2900 3600 138.8 44.8 114 107 201 208 2.5 1 15.1
7321bdb 7321bdf 7321bdt 110 225 98 3 1.1 310 355 2100 2800 187.5 89.5 119 0 211 218 2.5 1 17.2
7321CDB 7321CDF 7321cdt 110 225 98 3 1.1 362 413 3900 5100 93.2 4.8 119 0 211 218 2.5 1 17.2
7321db 7321df 7321dt 110 225 98 3 1.1 337 386 2800 3500 144.3 46.3 119 0 211 218 2.5 1 17.2
7322bdb 7322bdf 7322bdt 110 240 100 3 1.1 346 416 1900 2600 199.3 99.3 124 0 226 233 2.5 1 20.2
7322CDB 7322CDF 7322CDT 110 240 100 3 1.1 404 484 3500 4700 97.7 2.3 124 0 226 233 2.5 1 20.2
7322DB 7322df 7322dt 110 240 100 3 1.1 377 452 2600 3200 152.7 52.7 124 0 226 233 2.5 1 20.2
7324bdb 7324bdf 7324bdt 120 260 110 3 1.1 366 462 1800 2400 214.4 104.4 134 0 246 253 2.5 1 25.2
7324CDB 7324CDF 7324cdt 120 260 110 3 1.1 431 542 3300 4400 105.9 4.1 134 0 246 253 2.5 1 25.2
7324db 7324df 7324dt 120 260 110 3 1.1 400 504 2400 3000 164.7 54.7 134 0 246 253 2.5 1 25.2
7404bdb 7404bdf 7404bdt 20 72 38 1.1 0.6 54.4 35.9 6400 9600 58.4 20.4 27 0 65 67.5 0.6 0.6 0.79
7404db 7404df 7404dt 20 72 38 1.1 0.6 57.8 38.2 7400 11000 46.1 8.1 27 0 65 67.5 0.6 0.6 0.79
7405bdb 7405bdf 7405bdt 25 80 42 1.5 1 60 43 5500 8200 67.2 25.2 33.5 30.5 71.5 74.5 1.5 0.8 1.05
7405db 7405df 7405dt 25 80 42 1.5 1 64.5 46.3 6400 9100 52.8 10.8 33.5 30.5 71.5 74.5 1.5 0.8 1.05
7406bdb 7406bdf 7406bdt 30 90 46 1.5 1 71.8 52.8 4900 7300 74.6 28.6 38.5 35.5 81.5 84.5 1.5 0.8 1.37
7406db 7406df 7406dt 30 90 46 1.5 1 77.3 56.9 5700 8100 58.5 12.5 38.5 35.5 81.5 84.5 1.5 0.8 1.37
7407bdb 7407bdf 7407bdt 35 100 50 1.5 1 91.3 68.6 4300 6500 83.3 33.3 43.5 40.5 91.5 94.5 1.5 0.8 2.11
7407db 7407df 7407dt 35 100 50 1.5 1 98.2 73.9 5000 7200 65.2 15.2 43.5 40.5 91.5 94.5 1.5 0.8 2.11
7408bdb 7408bdf 7408bdt 40 110 54 2 1 105 80.8 3900 5900 90.8 36.8 50 45.5 100 104.5 2 1 2.46
7408db 7408df 7408dt 40 110 54 2 1 114 87.1 4600 6600 70.9 16.9 50 45.5 100 104.5 2 1 2.46
7409bdb 7409bdf 7409bdt 45 120 58 2 1 128 100 3600 5400 99.1 41.1 55 50.5 110 114.5 2 1 3.42
7409db 7409df 7409dt 45 120 58 2 1 138 108 4200 6000 77.2 19.2 55 50.5 110 114.5 2 1 3.41
7410bdb 7410bdf 7410bdt 50 130 62 2.1 1.1 147 121 3300 4900 106.9 44.9 62 0 118 123 2 1 3.84
7410db 7410df 7410dt 50 130 62 2.1 1.1 158 131 3800 5500 83.3 21.3 62 0 118 123 2 1 3.84
7411bdb 7411bdf 7411bdt 55 140 66 2.1 1.1 179 153 3000 4500 115.7 49.7 67 0 128 133 2 1 4.72
7411db 7411df 7411dt 55 140 66 2.1 1.1 192 165 3500 5000 89.9 23.9 67 0 128 133 2 1 4.72
7412bdb 7412bdf 7412bdt 60 150 70 2.1 1.1 194 173 2800 4100 125.1 55.1 72 0 138 143 2 1 6.26
7412db 7412df 7412dt 60 150 70 2.1 1.1 209 187 3200 4600 97 27 72 0 138 143 2 1 6.22
7413bdb 7413bdf 7413bdt 65 160 74 2.1 1.1 209 194 2600 3900 132.7 58.7 77 0 148 148 2 1 6.82
7413db 7413df 7413dt 65 160 74 2.1 1.1 226 209 3000 4300 102.9 28.9 77 0 148 148 2 1 6.82
7414bdb 7414bdf 7414bdt 70 180 84 3 1.1 241 237 2300 3500 148.4 66.4 84 0 166 166 2.5 1 9.98
7414db 7414df 7414dt 70 180 84 3 1.1 242 230 2700 3900 115.3 31.3 84 0 166 166 2.5 1 9.98
7415bdb 7415bdf 7415bdt 75 190 90 3 1.1 257 261 2200 3300 57.9 67.9 89 0 176 183 2.5 1 11.8
7415db 7415df 7415dt 75 190 90 3 1.1 278 282 2500 3600 122.7 32.7 89 0 176 183 2.5 1 11.8
7416bdb 7416bdf 7416bdt 80 200 96 3 1.1 290 307 2100 3100 167.2 71.2 94 0 186 193 2.5 1 15.8
7416db 7416df 7416dt 80 200 96 3 1.1 313 332 2400 3400 130 34 94 0 158 193 2.5 1 15.3
7417bdb 7417bdf 7417bdt 85 210 104 4 1.5 307 334 2000 3000 176.2 72.2 103 0 192 201.5 3 1.5 17.1
7417db 7417df 7417dt 85 210 104 4 1.5 331 360 2300 3300 137.5 33.5 103 0 192 201.5 3 1.5 17.1
7418bdb 7418bdf 7418bdt 90 225 108 4 1.5 325 364 1800 2800 186.2 78.2 108 0 207 216.5 3 1.5 22.7
7418db 7418df 7418dt 90 225 108 4 1.5 351 393 2100 3100 145 37 108 0 207 216.5 3 1.5 22.7
7900CDB 7900CDF 7900CDT 10 22 12 0.3 0.15 4.9 3.05 42000 55000 10.3 1.7 12.5 0 19.5 20.8 0.3 0.15 0.016
7901CDB 7901CDF 7901cdt 12 24 12 0.3 0.15 5.15 3.45 37000 49000 10.8 1.2 14.5 0 21.5 22.8 0.3 0.15 0.02
7902CDB 7902CDF 7902cdt 15 28 14 0.3 0.15 7.75 5.3 31000 41000 12.8 1.2 17.5 0 25.5 26.8 0.3 0.15 0.031
7903cdb 7903CDF 7903cdt 17 30 14 0.3 0.15 7.05 4.6 28000 38000 13.4 0.6 19.5 0 27.5 28.8 0.3 0.15 0.032
7904CDB 7904CDF 7904cdt 20 37 18 0.3 0.15 11.8 9.15 24000 31000 16.6 1.4 22.5 0 34.5 35.8 0.15 0.15 0.083
7905CDB 7905CDF 7905cdt 25 42 18 0.3 0.15 12.7 10.9 20000 27000 18.2 0.2 27.5 0 39.5 40.8 0.15 0.15 0.082
7906CDB 7906CDF 7906cdt 30 47 18 0.3 0.15 13.5 12.5 18000 23000 19.3 1.3 32.5 0 44.5 45.8 0.3 0.15 0.092
7907cdb 7907CDF 7907cdt 35 55 20 0.6 0.3 20.4 19.4 15000 20000 22.1 2.1 40 0 50 52.5 0.6 0.3 0.148
7908CDB 7908CDF 7908cdt 40 62 24 0.6 0.3 25.6 24.9 13000 18000 25.7 1.7 45 0 57 59.5 0.6 0.3 0.214
7909cdb 7909cdf 7909cdt 45 68 24 0.6 0.3 27 28.2 12000 16000 27.1 3.1 50 0 63 65.5 0.6 0.3 0.254
7910cdb 7910CDF 7910cdt 50 72 24 0.6 0.3 28.3 31.4 11000 15000 28.3 4.3 55 0 67 69.5 0.6 0.3 0.256
7911CDB 7911CDF 7911cdt 55 80 26 1 0.6 32 37 10000 14000 31.1 5.1 61 0 74 76.5 1 0.5 0.356
7912CDB 7912CDF 7912cdt 60 85 26 1 0.6 37.8 43.6 9100 13000 32.6 6.6 66 0 79 81.5 1 0.5 0.374
7913cdb 7913CDF 7913cdt 65 90 26 1 0.6 33.7 42.3 8600 12000 33.8 7.8 71 0 84 86.5 1 0.5 0.466
7914CDB 7914CDF 7914cdt 70 100 32 1 0.6 47 58 7800 11000 38.8 6.8 76 0 94 94 1 0.5 0.664
7915CDB 7915CDF 7915cdt 75 105 32 1 0.6 47.7 60.9 7400 9800 40.1 8.1 81 0 99 99 1 0.5 0.794
7916CDB 7916CDF 7916cdt 80 110 32 1 0.6 48.4 63.2 7000 9300 41.5 9.5 86 0 104 106.5 1 0.5 0.736
7917cdb 7917CDF 7917cdt 85 120 36 1.1 0.6 63.2 91.3 6500 8600 45.5 9.5 92 0 113 115 1 0.6 1.05
7918CDB 7918CDF 7918cdt 90 125 36 1.1 0.6 64.3 85.2 6200 8200 46.8 10.8 97 0 118 120 1 0.6 1.1
7919cdb 7919cdf 7919cdt 95 130 36 1.1 0.6 65.3 88.3 5900 7900 48.1 12.1 102 0 123 125 1 0.6 1.15
7920db 7920df 7920dt 100 140 40 1.1 0.6 90.2 117 5500 7400 52.1 12.1 107 0 133 135 1 0.6 1.55
7921CDB 7921CDF 7921cdt 105 145 40 1.1 0.6 92.1 123 5300 7100 53.5 13.5 112 0 138 140 1 0.6 1.62
7922CDB 7922CDF 7922cdt 110 150 40 1.1 0.6 93.8 129 5100 5800 54.8 14.8 117 0 143 145 1 0.6 1.68
7924CDB 7924CDF 7924cdt 120 165 44 1.1 0.6 117 162 4700 6200 60.2 16.2 127 0 158 160 1 0.6 2.56
ACH006CDB ACH006CDF ACH006CDT 30 55 26 1 0.6 20.5 18.7 16000 21000 24.2 1.6 36 0 49 51.5 1 0.5 0.244
ACH007CDB ACH007CDF ACH007CDT 35 62 28 1 0.6 21.6 21.8 14000 19000 27 1 41 0 56 58.5 1 0.5 0.324
ACH008CDB ACH008CDF ACH008CDT 40 68 30 1 0.6 22.6 24.4 13000 17000 29.5 0.5 46 0 62 64.5 1 0.5 0.406
ACH009CDB ACH009CDF ACH009CDT 45 75 32 1 0.6 25.2 28 11000 15000 32.1 0.1 51 0 69 71.5 1 0.5 0.516
ACH010CDB ACH010CDF ACH010CDT 50 80 32 1 0.6 26.2 30.9 10000 14000 33.4 1.4 56 0 74 76.5 1 0.5 0.558
ACH011CDB ACH011CDF ACH011CDT 55 90 36 1.1 0.6 32.4 39.1 9200 13000 37.4 1.4 62 0 83 85 1 0.6 0.826
ACH012CDB ACH012CDF ACH012CDT 60 95 36 1.1 0.6 33.7 42.3 8600 12000 38.8 2.8 67 0 88 90 1 0.6 0.884
ACH013CDB ACH013CDF ACH013CDT 65 100 36 1.1 0.6 34.9 45.3 8000 11000 40.1 4.1 72 0 93 95 1 0.6 0.942
ACH014CDB ACH014CDF ACH014CDT 70 110 40 1.1 0.6 47.7 60.9 7400 9800 44.1 4.1 77 0 103 103 1 0.6 1.28
ACH015CDB ACH015CDF ACH015CDT 75 115 40 1.1 0.6 48.4 63.2 7000 9300 45.4 5.4 82 0 108 110 1 0.6 1.35
ACH016CDB ACH016CDF ACH016CDT 80 125 44 1.1 0.6 56.7 75.3 6500 8600 49.5 5.5 87 0 118 120 1 0.6 1.83
ACH017CDB ACH017CDF ACH017CDT 85 130 44 1.1 0.6 57.6 77.8 6200 8200 50.8 6.8 92 0 123 125 1 0.6 1.92
ACH018CDB ACH018CDF ACH018CDT 90 140 48 1.5 1 75.5 103 5800 7700 54.8 6.8 98.5 0 131.5 134.5 1.5 0.8 2.46
ACH019CDB ACH019CDF ACH019CDT 95 145 48 1.5 1 76.7 106 5500 7400 56.1 8.1 103.5 0 136.5 139.5 1.5 0.8 2.57
ACH020CDB ACH020CDF ACH020CDT 100 150 48 1.5 1 77.8 110 5300 7100 57.5 9.5 108.5 0 141.5 144.5 1.5 0.6 2.68
ACH021CDB ACH021CDF ACH021CDT 105 160 52 2 1 88.4 126 5000 6700 61.5 9.5 115 0 150 154.5 2 0.6 3.41
ACH022CDB ACH022CDF ACH022CDT 110 170 56 2 1 99.5 144 4800 6300 65.5 9.5 120 0 160 164.5 2 0.8 4.27
ACH024CDB ACH024CDF ACH024CDT 120 180 56 2 1 103 153 4400 5900 68.2 12.2 130 0 170 174.5 2 0.8 4.57
ACH910CDB ACH910CDF ACH910CDT 50 72 24 0.6 0.3 21.4 25.6 11000 15000 28.3 4.3 55 0 67 69.5 0.6 0.3 0.278
ACH911CDB ACH911CDF ACH911CDT 55 80 26 1 0.6 23 29.2 10000 14000 31.1 5.1 61 0 74 76.5 1 0.5 0.435
ACH912CDB ACH912CDF ACH912CDT 60 85 26 1 0.6 22.6 29 9100 13000 32.4 6.4 66 0 79 81.5 1 0.5 0.418
ACH913CDB ACH913CDF ACH913CDT 65 90 26 1 0.6 23.2 30.8 8600 12000 33.8 7.8 71 0 84 86.5 1 0.5 0.446
ACH914CDB ACH914CDF ACH914CDT 70 100 32 1 0.6 29.2 39.1 7800 11000 38.8 6.8 76 0 94 94 1 0.5 0.738
ACH915CDB ACH915CDF ACH915CDT 75 105 32 1 0.6 30 41.4 7400 9800 40.1 8.1 81 0 99 99 1 0.5 0.782
ACH916CDB ACH916CDF ACH916CDT 80 110 32 1 0.6 30.7 43.7 7000 9300 41.4 9.4 86 0 104 160.5 1 0.5 0.824
ACH917CDB ACH917CDF ACH917CDT 85 120 36 1.1 0.6 36.9 52.3 6500 8600 45.5 9.5 92 0 113 115 1 0.6 1.17
ACH918CDB ACH918CDF ACH918CDT 90 125 36 1.1 0.6 37.9 55.3 6200 8200 46.8 10.8 97 0 118 120 1 0.6 1.23
ACH919CDB ACH919CDF ACH919CDT 95 130 36 1.1 0.6 38.9 58.2 5900 7900 48.1 12.1 102 0 123 125 1 0.6 1.29
ACH920CDB ACH920CDF ACH920CDT 100 140 40 1.1 0.6 54.7 80.8 5500 7400 52.1 12.1 107 0 133 135 1 0.6 1.74
ACH921CDB ACH921CDF ACH921CDT 105 145 40 1.1 0.6 56.3 85.2 5300 7100 53.5 13.5 112 0 138 140 1 0.6 1.81
ACH922CDB ACH922CDF ACH922CDT 110 150 40 1.1 0.6 56.7 87.3 5100 5800 54.8 14.8 117 0 143 145 1 0.6 1.88
ACH924CDB ACH924CDF ACH924CDT 120 165 44 1.1 0.6 66.2 104 4700 6200 60.2 16.2 127 0 158 160 1 0.6 2.58
