Модель: | Упор цилиндрические роликовые подшипники |
---|---|
Марка продукта: | MBY |
Количество: | |

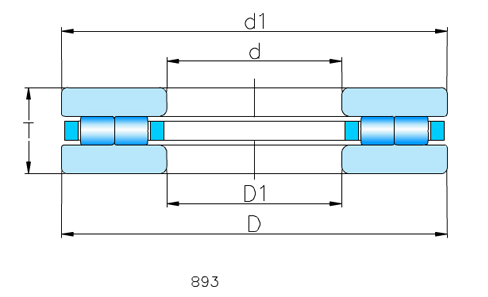

Несущий Число | Граница размеры (мм) | Базовый нагрузка рейтинги (кН) | Ограничение скорость (обороты) | Масса (кг) | ||||||||||
MBY | d | D | D1S | D1S | T | DW | B | рупий | Cr | Коррекция | Смазка | масло | (Ок.) | |
Максимум | мин | мин | ||||||||||||
89306 | 30 | 60 | 60 | 32 | 18 | 5.5 | 6.25 | 1 | 54 | 166 | 1300 | 5000 | 0.25 | |
89307 | 35 | 68 | 68 | 37 | 20 | 6 | 7 | 1 | 66 | 214 | 1200 | 4600 | 0.36 | |
89308 | 40 | 78 | 78 | 42 | 22 | 7 | 7.5 | 1 | 85 | 277 | 1000 | 4000 | 0.52 | |
89309 | 45 | 85 | 85 | 47 | 24 | 7.5 | 8.25 | 1 | 102 | 345 | 900 | 3600 | 0.67 | |
89310 | 50 | 95 | 95 | 52 | 27 | 8 | 9.5 | 1.1 | 125 | 445 | 800 | 3200 | 0.94 | |
89311 | 55 | 105 | 105 | 57 | 30 | 9 | 10.5 | 1.1 | 158 | 570 | 730 | 2900 | 1.27 | |
89312 | 60 | 110 | 110 | 62 | 30 | 9 | 10.5 | 1.1 | 162 | 600 | 680 | 2700 | 1.35 | |
89313 | 65 | 115 | 115 | 67 | 30 | 9 | 10.5 | 1.1 | 166 | 635 | 650 | 2600 | 1.43 | |
89314 | 70 | 125 | 125 | 72 | 34 | 10 | 12 | 1.1 | 205 | 790 | 600 | 2400 | 1.93 | |
89315 | 75 | 135 | 135 | 77 | 36 | 11 | 12.5 | 1.5 | 239 | 920 | 550 | 2200 | 2.41 | |
89316 | 80 | 140 | 140 | 82 | 36 | 11 | 12.5 | 1.5 | 246 | 970 | 530 | 2100 | 2.53 | |
89317 | 85 | 150 | 150 | 88 | 39 | 12 | 13.5 | 1.5 | 281 | 1100 | 500 | 2000 | 3.14 | |
89318 | 90 | 155 | 155 | 93 | 39 | 12 | 13.5 | 1.5 | 289 | 1160 | 480 | 1900 | 3.28 | |
89320 | 100 | 170 | 170 | 103 | 42 | 13 | 14.5 | 1.5 | 335 | 1370 | 430 | 1700 | 4.19 | |
89322 | 110 | 190 | 190 | 113 | 48 | 15 | 16.5 | 2 | 430 | 177 | 400 | 1600 | 6.03 | |
81102 | 15 | 28 | 28 | 16 | 9 | 3.5 | 2.75 | 0.3 | 12.9 | 28.6 | 2800 | 11000 | 0.026 | |
81103 | 17 | 30 | 30 | 18 | 9 | 3.5 | 2.75 | 0.3 | 13.4 | 31 | 2500 | 10000 | 0.03 | |
81104 | 20 | 35 | 35 | 21 | 10 | 4.5 | 2.75 | 0.3 | 20.2 | 46.5 | 2100 | 8500 | 0.004 | |
81105 | 25 | 42 | 42 | 26 | 11 | 5 | 3 | 0.6 | 27.3 | 68 | 1800 | 7000 | 0.006 | |
81106 | 30 | 47 | 47 | 32 | 11 | 5 | 3 | 0.6 | 27.8 | 72.5 | 1500 | 6000 | 0.007 | |
81107 | 35 | 52 | 52 | 37 | 12 | 5 | 3.5 | 0.6 | 31 | 87 | 1400 | 5500 | 0.009 | |
81108 | 40 | 60 | 60 | 42 | 13 | 6 | 3.5 | 0.6 | 43 | 121 | 1200 | 4800 | 0.135 | |
81109 | 45 | 65 | 65 | 47 | 14 | 6 | 4 | 0.5 | 45.5 | 135 | 1100 | 4400 | 0.15 | |
81110 | 50 | 70 | 70 | 52 | 14 | 6 | 4 | 0.5 | 48 | 150 | 1000 | 4000 | 0.165 | |
81111 | 55 | 78 | 78 | 57 | 16 | 6 | 5 | 0.6 | 62.5 | 215 | 900 | 3600 | 0.25 | |
81112 | 60 | 85 | 85 | 62 | 17 | 7.5 | 4.75 | 1 | 69 | 215 | 830 | 3300 | 0.285 | |
81113 | 65 | 90 | 90 | 67 | 18 | 7.5 | 5.25 | 1 | 73 | 236 | 780 | 3100 | 0.34 | |
81114 | 70 | 95 | 95 | 72 | 18 | 7.5 | 5.25 | 1 | 76.5 | 257 | 730 | 2900 | 0.365 | |
81115 | 75 | 100 | 100 | 77 | 19 | 7.5 | 5.75 | 1 | 78 | 268 | 680 | 2700 | 0.425 | |
81116 | 80 | 105 | 105 | 82 | 19 | 7.5 | 5.75 | 1 | 79.5 | 279 | 650 | 2600 | 0.445 | |
81117 | 85 | 110 | 110 | 87 | 19 | 7.5 | 5.75 | 1 | 83 | 300 | 630 | 2500 | 0.475 | |
81118 | 90 | 120 | 120 | 92 | 22 | 9 | 6.5 | 1 | 112 | 395 | 580 | 2300 | 0.67 | |
81120 | 100 | 135 | 135 | 102 | 25 | 11 | 7 | 1 | 158 | 555 | 500 | 2000 | 1 | |
81122 | 110 | 145 | 145 | 112 | 25 | 11 | 7 | 1 | 165 | 605 | 480 | 1900 | 1.1 | |
81124 | 120 | 155 | 155 | 122 | 25 | 11 | 7 | 1 | 172 | 655 | 450 | 1800 | 1.17 | |
81126 | 130 | 170 | 170 | 132 | 30 | 12 | 9 | 1 | 197 | 755 | 400 | 1600 | 1.74 | |
81128 | 140 | 180 | 178 | 142 | 31 | 12 | 9.5 | 1 | 206 | 815 | 380 | 1500 | 1.95 | |
81130 | 150 | 190 | 188 | 152 | 31 | 12 | 9.5 | 1 | 214 | 870 | 350 | 1400 | 2.07 | |
81132 | 160 | 200 | 198 | 162 | 31 | 12 | 9.5 | 1 | 221 | 930 | 330 | 1300 | 2.19 | |
81206 | 30 | 52 | 52 | 32 | 16 | 7.5 | 4.25 | 0.6 | 53.5 | 129 | 1500 | 6000 | 0.14 | |
81207 | 35 | 62 | 62 | 37 | 18 | 7.5 | 5.25 | 1 | 54.5 | 139 | 1200 | 4900 | 0.235 | |
81208 | 40 | 68 | 68 | 42 | 19 | 9 | 5 | 1 | 74.5 | 190 | 1100 | 4400 | 0.265 | |
81209 | 45 | 73 | 73 | 47 | 20 | 9 | 5.5 | 1 | 82 | 222 | 1000 | 4100 | 0.31 | |
81210 | 50 | 78 | 78 | 52 | 22 | 9 | 6.5 | 1 | 85 | 238 | 950 | 3800 | 0.385 | |
81211 | 55 | 90 | 90 | 57 | 25 | 11 | 7 | 1 | 121 | 340 | 830 | 3300 | 0.61 | |
81212 | 60 | 95 | 95 | 62 | 26 | 11 | 7.5 | 1 | 125 | 365 | 780 | 3100 | 0.66 | |
81213 | 65 | 100 | 100 | 67 | 27 | 11 | 8 | 1 | 130 | 385 | 730 | 2900 | 0.775 | |
81214 | 70 | 105 | 105 | 72 | 27 | 11 | 8 | 1 | 134 | 410 | 680 | 2700 | 0.815 | |
81215 | 75 | 110 | 110 | 77 | 27 | 11 | 8 | 1 | 138 | 435 | 650 | 2600 | 0.86 | |
81216 | 80 | 115 | 115 | 82 | 28 | 11 | 8.5 | 1 | 142 | 460 | 630 | 2500 | 0.95 | |
81217 | 85 | 125 | 125 | 88 | 31 | 12 | 9.5 | 1 | 169 | 550 | 580 | 2300 | 1.28 | |
81218 | 90 | 135 | 135 | 93 | 35 | 14 | 10.5 | 1.1 | 213 | 680 | 530 | 2100 | 1.82 | |
81220 | 100 | 150 | 150 | 103 | 38 | 15 | 11.5 | 1.1 | 243 | 795 | 480 | 1900 | 2.24 | |
81222 | 110 | 160 | 160 | 113 | 38 | 15 | 11.5 | 1.1 | 259 | 885 | 450 | 1800 | 2.45 | |
81224 | 120 | 170 | 170 | 123 | 39 | 15 | 12 | 1.1 | 264 | 930 | 430 | 1700 | 2.69 | |
81226 | 130 | 190 | 187 | 133 | 45 | 19 | 13 | 1.5 | 360 | 1210 | 380 | 1500 | 4.2 | |
81228 | 140 | 200 | 197 | 143 | 46 | 19 | 13.5 | 1.5 | 370 | 1280 | 350 | 1400 | 4.57 |
