Модель: | Упор сферический ролик |
---|---|
Марка продукта: | MBY |
штат: | |
Количество: | |

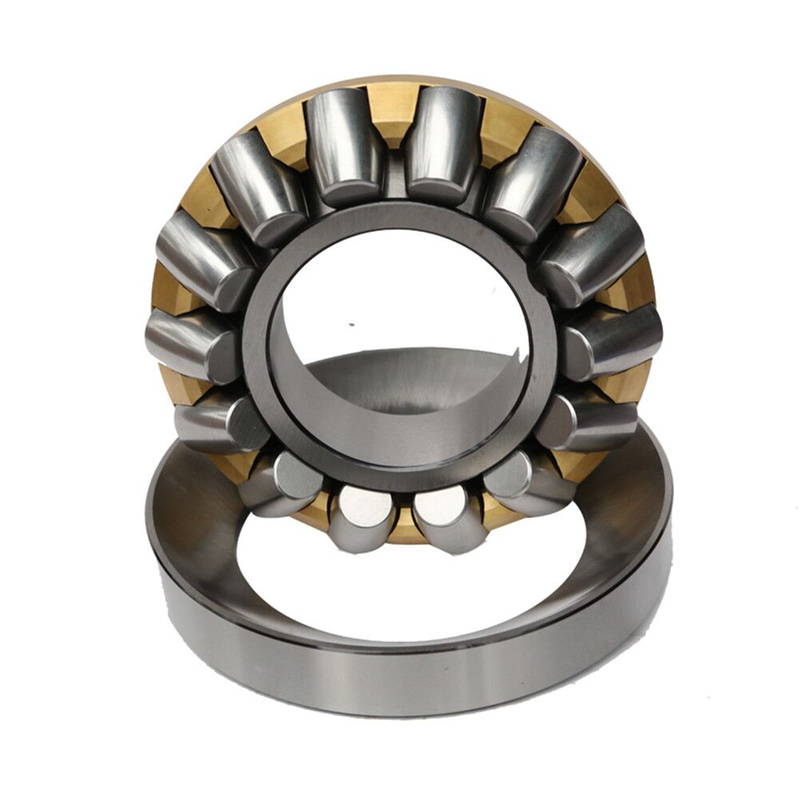

Сферические подшипники сферических роликов MBY® имеют специально разработанные гоночные дорожки и размещают большое количество асимметричных роликов. Ролики имеют оптимальное соответствие с гоночными трассами стиральных машин для оптимизации распределения нагрузки по длине роликов. Следовательно, они могут вместить относительно высокие скорости, тяжелые осевые нагрузки в одном направлении и тяжелые радиальные нагрузки. Нагрузка передается между гоночными дорогами под углом к оси подшипника.
Сферические подшипники сферы MBY® самостоятельно поддерживают и могут приспособиться к смещению вала относительно корпуса, что может быть вызвано, например, путем отклонения вала.

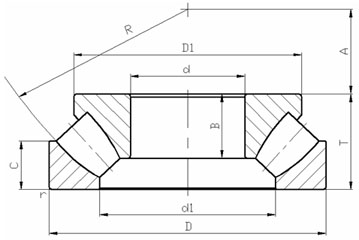

Главный измерение( мм) | Другой Габаритные размеры( мм) | Обозначения | Базовый нагрузка рейтинги (n) | Скорость рейтинги (RPM) | Вес (кг) | |||||||||
d | D | T | D1 | D1 | B | C | A | r мин | Cr | Коррекция | Смазка | Масло | ||
180 | 250 | 42 | 209 | 239 | 15 | 21.3 | 97 | 1.5 | 29236 | 420 | 3560 | 750 | 1300 | 7.05 |
190 | 270 | 48 | 224 | 254 | 15 | 24 | 103 | 2 | 29238 | 500 | 2000 | 1300 | 7.95 | |
200 | 280 | 48 | 236 | 271 | 15 | 24 | 108 | 2 | 29240 | 512 | 2200 | 1300 | 9.08 | |
220 | 300 | 48 | 258 | 287.3 | 15 | 23 | 117 | 2 | 29244 | 540 | 2300 | 1200 | 9.84 | |
240 | 340 | 60 | 282 | 332 | 19 | 29.3 | 160 | 2.1 | 29248 | 788 | 3040 | 1000 | 17.1 | |
500 | 670 | 103 | 571.5 | 641 | 33 | 50.5 | 268 | 5 | 292/500 | 2240 | 12500 | 450 | 101 | |
500 | 750 | 150 | 603 | 707.1 | 51 | 73.2 | 280 | 6 | 292/500 | 4400 | 17700 | 360 | 231 | |
500 | 870 | 224 | 641 | 798.8 | 81 | 109.8 | 290 | 9.5 | 292/500 | 7550 | 28800 | 320 | 559 | |
260 | 360 | 60 | 303 | 324.4 | 19 | 29.7 | 139 | 2.1 | 29252 | 815 | 3550 | 1000 | 18.5 | |
530 | 710 | 109 | 604.5 | 679.7 | 35 | 54 | 288 | 5 | 292/530 | 2800 | 16200 | 400 | 108 | |
530 | 920 | 236 | 682.5 | 849.5 | 85 | 113.3 | 309 | 9.5 | 292/530 | 9000 | 41600 | 300 | 650 | |
530 | 800 | 160 | 642 | 752.7 | 54 | 78.6 | 295 | 7.5 | 292/530 | 5170 | 26300 | 320 | 270 | |
280 | 380 | 60 | 323 | 362 | 19 | 29.5 | 150 | 2.1 | 29256 | 850 | 3860 | 900 | 19.5 | |
560 | 850 | 175 | 675 | 797 | 60 | 87 | 310 | 7.5 | 292/560 | 5790 | 47800 | 280 | 320 | |
560 | 980 | 250 | 722.5 | 905.6 | 90 | 122.5 | 328 | 12 | 292/560 | 10210 | 47800 | 250 | 740 | |
560 | 750 | 115 | 639 | 717.9 | 37 | 57.7 | 302 | 5 | 292/560 | 3090 | 18100 | 350 | 140 | |
300 | 420 | 73 | 350.5 | 399.8 | 21 | 35.8 | 162 | 3 | 29260 | 1140 | 3000 | 710 | 31 | |
600 | 800 | 122 | 685.5 | 965.4 | 39 | 59.4 | 321 | 5 | 292/600 | 4320 | 20100 | 300 | 172 | |
600 | 900 | 180 | 723.5 | 845.5 | 61 | 88 | 335 | 7.5 | 292/600 | 6350 | 32600 | 250 | 368 | |
600 | 1030 | 258 | 766 | 1050 | 110 | 136 | 347 | 12 | 292/600 | 12700 | 52800 | 200 | 880 | |
630 | 1090 | 280 | 830 | 1040 | 100 | 136 | 365 | 12 | 292/630 | 13700 | 58200 | 200 | 1000 | |
630 | 950 | 190 | 763.5 | 895.6 | 65 | 93.9 | 345 | 9.5 | 292/630 | 7070 | 37000 | 200 | 438 | |
630 | 850 | 132 | 720 | 812.6 | 42 | 67.3 | 338 | 6 | 292/630 | 4030 | 23900 | 250 | 218 | |
320 | 440 | 73 | 369.5 | 418.6 | 21 | 36 | 172 | 3 | 29264 | 1140 | 3100 | 630 | 32.8 | |
340 | 460 | 73 | 395 | 439.2 | 21 | 36.5 | 183 | 3 | 29268 | 1160 | 3200 | 630 | 34.5 | |
710 | 950 | 145 | 810.5 | 909.5 | 46 | 73.4 | 380 | 6 | 292/710 | 4840 | 29400 | 150 | 261 | |
710 | 1220 | 308 | 925 | 1165 | 113 | 150 | 415 | 15 | 292/710 | 16800 | 71000 | 180 | 1500 | |
710 | 1060 | 212 | 848.5 | 994.1 | 72 | 105.2 | 394 | 9.5 | 292/710 | 8570 | 45100 | 120 | 579 | |
360 | 500 | 85 | 419 | 475.4 | 25 | 40.8 | 194 | 4 | 29272 | 1500 | 4050 | 560 | 50.4 | |
750 | 1000 | 150 | 854 | 958.6 | 48 | 76.8 | 406 | 6 | 292/750 | 5180 | 31900 | 130 | 130 | |
750 | 1280 | 315 | 972 | 1152 | 160 | 158 | 436 | 15 | 292/750 | 17500 | 75000 | 150 | 1650 | |
750 | 1120 | 224 | 917.5 | 1061.3 | 76 | 108 | 415 | 9.5 | 292/750 | 9370 | 50600 | 100 | 696 | |
380 | 520 | 85 | 439 | 524.3 | 27 | 41.8 | 202 | 4 | 29276 | 1530 | 4300 | 560 | 52.8 | |
400 | 540 | 85 | 459 | 515.3 | 27 | 41.9 | 212 | 4 | 29280 | 1600 | 7600 | 700 | 55.1 | |
800 | 1060 | 155 | 907.5 | 50 | 79.2 | 426 | 7.5 | 292/800 | 5620 | 35300 | 100 | 339 | ||
800 | 1180 | 230 | 948 | 1108 | 78 | 116.1 | 440 | 9.5 | 292/800 | 10110 | 54900 | 80 | 780 | |
420 | 580 | 95 | 485 | 552.6 | 30 | 49.2 | 225 | 5 | 29284 | 2000 | 5600 | 560 | 74.9 | |
850 | 1120 | 160 | 961 | 1076.7 | 51 | 82.9 | 453 | 7.5 | 292/850 | 6080 | 38900 | 80 | 389 | |
440 | 600 | 95 | 505 | 573.8 | 30 | 49.3 | 235 | 5 | 29288 | 2040 | 9680 | 560 | 79 | |
900 | 1180 | 170 | 1018.5 | 1132.2 | 54 | 84.5 | 477 | 7.5 | 292/900 | 6590 | 42000 | 60 | 444 | |
460 | 620 | 95 | 535 | 597.8 | 30 | 49.6 | 245 | 5 | 29292 | 2080 | 10000 | 500 | 80.9 | |
480 | 650 | 103 | 556 | 635 | 33 | 55 | 259 | 5 | 29296 | 2150 | 11800 | 480 | 98 | |
85 | 150 | 39 | 111 | 137.9 | 13 | 18.7 | 50 | 1.5 | 29317 | 285 | 915 | 1500 | 2000 | 2.87 |
90 | 155 | 39 | 117.5 | 143.3 | 13 | 17.9 | 52 | 1.5 | 29318 | 290 | 950 | 1500 | 2000 | 3.06 |
100 | 170 | 42 | 127.5 | 158 | 14 | 20.5 | 58 | 1.5 | 29320 | 325 | 1100 | 1400 | 1800 | 3.91 |
110 | 190 | 48 | 144 | 177 | 16 | 22.1 | 64 | 2 | 29322 | 430 | 1510 | 1200 | 1600 | 5.67 |
120 | 210 | 54 | 156 | 194.4 | 18 | 25.9 | 70 | 2.1 | 29324 | 520 | 1740 | 1000 | 1400 | 7.96 |
130 | 225 | 58 | 168 | 208.7 | 19 | 27.8 | 76 | 2.1 | 29326 | 600 | 2100 | 900 | 1400 | 9.45 |
140 | 240 | 60 | 181 | 221.4 | 20 | 28.9 | 82 | 2.1 | 29328 | 670 | 2370 | 850 | 1200 | 11.2 |
150 | 250 | 60 | 191.5 | 232 | 20 | 29.8 | 87 | 2.1 | 29330 | 695 | 2460 | 850 | 1200 | 11.7 |
160 | 270 | 67 | 205 | 250.5 | 23 | 31.7 | 92 | 3 | 29332 | 815 | 2460 | 800 | 1100 | 15.5 |
170 | 280 | 67 | 216.5 | 260.2 | 23 | 31.4 | 96 | 3 | 29334 | 865 | 3010 | 800 | 1000 | 16.3 |
180 | 300 | 73 | 227.5 | 278.4 | 25 | 34.6 | 103 | 3 | 29336 | 980 | 3730 | 1000 | 20.7 | |
190 | 320 | 78 | 240.5 | 298.5 | 27 | 38.6 | 110 | 4 | 29338 | 1140 | 6050 | 580 | 760 | 25.5 |
200 | 340 | 85 | 259 | 315.6 | 29 | 39.1 | 116 | 4 | 29340 | 1290 | 4750 | 650 | 800 | 32 |
220 | 360 | 85 | 278.5 | 334.4 | 29 | 40.7 | 125 | 4 | 29344 | 1340 | 5020 | 650 | 800 | 34.5 |
240 | 380 | 85 | 299 | 353.7 | 27 | 41.7 | 135 | 4 | 29348 | 1370 | 5270 | 630 | 800 | 36.3 |
260 | 420 | 95 | 325 | 393.1 | 32 | 47.5 | 148 | 5 | 29352 | 1370 | 6080 | 550 | 710 | 51.5 |
280 | 440 | 95 | 364 | 412.5 | 32 | 46.3 | 158 | 5 | 29356 | 1830 | 6750 | 550 | 710 | 54 |
300 | 480 | 109 | 371.5 | 447.8 | 37 | 53.1 | 168 | 5 | 29360 | 2120 | 7850 | 470 | 630 | 75.4 |
320 | 500 | 109 | 393 | 468 | 37 | 53 | 180 | 5 | 29364 | 2240 | 8900 | 450 | 560 | 80 |
670 | 1000 | 200 | 803 | 939.1 | 68 | 98.2 | 372 | 9.5 | 293/670 | 7720 | 40300 | 150 | 501 | |
340 | 540 | 122 | 422 | 504 | 41 | 57.8 | 192 | 5 | 29368 | 2600 | 9650 | 400 | 500 | 106 |
360 | 560 | 122 | 442.5 | 475.3 | 41 | 58.1 | 202 | 5 | 29372 | 2700 | 10700 | 500 | 140 | |
380 | 600 | 132 | 476 | 588.9 | 44 | 61.4 | 216 | 6 | 29376 | 3200 | 12500 | 500 | 140 | |
400 | 620 | 132 | 490 | 564.9 | 44 | 64.7 | 225 | 6 | 29380 | 3350 | 12800 | 450 | 146 | |
420 | 650 | 140 | 514.5 | 620 | 48 | 68 | 235 | 6 | 29384 | 3570 | 13400 | 420 | 170 | |
440 | 680 | 145 | 539 | 637.3 | 49 | 70.8 | 245 | 6 | 29388 | 3800 | 14800 | 400 | 192 | |
460 | 710 | 150 | 559.5 | 665.1 | 51 | 74.4 | 257 | 6 | 29392 | 4150 | 16200 | 400 | 216 | |
480 | 730 | 150 | 582 | 686 | 51 | 74.4 | 270 | 6 | 29396 | 4300 | 16700 | 400 | 224 | |
60 | 130 | 42 | 86 | 117.7 | 15 | 20.1 | 38 | 1.5 | 29412 | 270 | 765 | 1650 | 2200 | 2.75 |
65 | 140 | 45 | 93 | 126.8 | 16 | 21.3 | 42 | 2 | 29413 | 325 | 920 | 1550 | 2200 | 3.41 |
70 | 150 | 48 | 99.5 | 136.3 | 17 | 22.7 | 44 | 2 | 29414 | 365 | 980 | 1450 | 2000 | 4.1 |
75 | 160 | 51 | 106 | 145.8 | 18 | 24.3 | 47 | 2 | 29415 | 415 | 1140 | 1450 | 1800 | 4.98 |
80 | 170 | 54 | 113 | 154.1 | 19 | 26.8 | 50 | 2.1 | 29416 | 450 | 1240 | 1450 | 1800 | 5.95 |
85 | 180 | 58 | 121 | 162.1 | 21 | 27.3 | 54 | 2.1 | 29417 | 510 | 1450 | 1200 | 1600 | 7.19 |
90 | 190 | 60 | 128 | 172 | 22 | 28.5 | 56 | 2.1 | 29418 | 570 | 1620 | 1200 | 1600 | 8.28 |
100 | 210 | 67 | 141.5 | 190 | 24 | 32.4 | 62 | 3 | 29420 | 680 | 1900 | 1000 | 1400 | 11.2 |
110 | 230 | 73 | 153.5 | 209.1 | 26 | 34.5 | 69 | 3 | 29422 | 780 | 2340 | 900 | 1200 | 14.7 |
130 | 270 | 85 | 182.5 | 243.5 | 31 | 39.7 | 81 | 4 | 29426 | 1100 | 3170 | 780 | 1100 | 23.6 |
14 | 280 | 85 | 194 | 254.1 | 31 | 39.8 | 86 | 4 | 29428 | 1160 | 3410 | 780 | 1000 | 24.6 |
150 | 300 | 90 | 209.5 | 271.3 | 32 | 42.1 | 92 | 4 | 29430 | 1250 | 3880 | 700 | 1000 | 29.6 |
160 | 320 | 95 | 219 | 292.2 | 34 | 47.1 | 99 | 5 | 29432 | 1430 | 4370 | 680 | 900 | 35.9 |
170 | 340 | 103 | 234 | 309.2 | 37 | 48.6 | 104 | 5 | 29434 | 1600 | 4810 | 630 | 850 | 44 |
180 | 360 | 109 | 249.5 | 327.5 | 39 | 51.9 | 110 | 5 | 29436 | 1760 | 5500 | 600 | 800 | 52.2 |
190 | 380 | 115 | 262 | 345.3 | 41 | 54.9 | 117 | 5 | 29438 | 1930 | 4010 | 750 | 800 | 61.4 |
200 | 400 | 122 | 278 | 363.2 | 44 | 57.5 | 122 | 5 | 29440 | 2160 | 6820 | 550 | 760 | 73 |
220 | 420 | 122 | 300 | 383.2 | 44 | 56.9 | 132 | 6 | 29444 | 2200 | 7710 | 500 | 680 | 74.2 |
240 | 440 | 122 | 318 | 402 | 44 | 56.9 | 142 | 6 | 29448 | 2360 | 7650 | 500 | 630 | 83 |
260 | 480 | 132 | 343.5 | 440.8 | 48 | 64.7 | 154 | 6 | 29452 | 2750 | 9050 | 450 | 630 | 106 |
280 | 520 | 145 | 373.5 | 476.1 | 52 | 67.6 | 166 | 6 | 29456 | 3150 | 10800 | 430 | 560 | 137 |
300 | 540 | 145 | 395 | 479.5 | 52 | 68.3 | 172 | 6 | 29460 | 3350 | 10800 | 400 | 500 | 146 |
320 | 580 | 155 | 418 | 534.9 | 56 | 76.1 | 191 | 7.5 | 29464 | 3800 | 13500 | 380 | 500 | 179 |
340 | 620 | 170 | 448.5 | 565.7 | 61 | 79.1 | 201 | 7.5 | 29468 | 4300 | 15100 | 340 | 450 | 228 |
360 | 640 | 170 | 468.5 | 565.7 | 61 | 81.6 | 210 | 7.5 | 29472 | 4500 | 16200 | 450 | 234 | |
380 | 670 | 175 | 488.5 | 469.2 | 61 | 85.2 | 230 | 7.5 | 29476 | 4650 | 17300 | 430 | 263 | |
400 | 710 | 185 | 515.5 | 621.1 | 67 | 92.3 | 236 | 7.5 | 29480 | 5200 | 19700 | 380 | 314 | |
420 | 730 | 185 | 520 | 675.3 | 67 | 91.2 | 244 | 7.5 | 29484 | 5400 | 20200 | 370 | 325 | |
440 | 780 | 206 | 572 | 715.7 | 74 | 101.6 | 260 | 9.5 | 29488 | 6200 | 23400 | 350 | 421 | |
460 | 800 | 206 | 596.5 | 737.1 | 74 | 99.9 | 272 | 9.5 | 29492 | 6400 | 25100 | 350 | 435 | |
480 | 850 | 224 | 628.5 | 782.2 | 71 | 106.5 | 280 | 9.5 | 29496 | 7350 | 27000 | 320 | 534.2 | |
500 | 870 | 224 | 643 | 790 | 109.1 | 290 | 9.5 | 294/500 | 9750 | 39500 | 280 | 360 | 523 | |
530 | 920 | 236 | 682 | 840 | 118.5 | 309 | 9.5 | 294/530 | 10000 | 42900 | 250 | 350 | 615 | |
560 | 980 | 250 | 727 | 890 | 120 | 328 | 12 | 294/560 | 11100 | 45400 | 220 | 310 | 741 | |
600 | 1030 | 258 | 766 | 940 | 128.7 | 347 | 12 | 294/600 | 12730 | 52270 | 200 | 280 | 832 | |
710 | 1220 | 308 | 910 | 1130 | 148.5 | 415 | 15 | 294/710 | 15600 | 71000 | 170 | 220 | 1400 | |
750 | 1280 | 315 | 972 | 1164 | 158 | 436 | 15 | 294/750 | 18970 | 87680 | 170 | 220 | 1530 | |
850 | 1440 | 354 | 1098 | 1330 | 172 | 494 | 15 | 294/850 | 20500 | 98000 | 170 | 220 | 2090 | |
900 | 1180 | 170 | 1017 | 1128.5 | 86 | 477 | 7.5 | 294/900 | 25600 | 125000 | 150 | 200 | 470 | |
120 | 250 | 78 | 170 | 225.4 | 28 | 36.6 | 74 | 4 | 39424 | 915 | 2770 | 900 | 1200 | 18.5 |
190 | 270 | 48 | 224 | 254 | 15 | 24 | 103 | 2 | 9069238 | 400 | 1250 | 1000 | 7.95 | |
110 | 190 | 48 | 144 | 177 | 16 | 22.1 | 64 | 2 | 9069322 | 344 | 655 | 1600 | 5.67 | |
120 | 210 | 54 | 156 | 194.4 | 18 | 25.9 | 70 | 2.1 | 9069324 | 416 | 1040 | 1400 | 7.96 | |
130 | 225 | 58 | 168 | 208.7 | 19 | 27.8 | 76 | 2.1 | 9069326 | 480 | 1180 | 1400 | 9.45 | |
150 | 250 | 60 | 191.5 | 232 | 20 | 29.8 | 87 | 2.1 | 9069330 | 556 | 1460 | 1200 | 11.7 | |
160 | 270 | 67 | 205 | 250.5 | 23 | 31.7 | 92 | 3 | 9069332 | 652 | 1660 | 1100 | 15.5 | |
170 | 280 | 67 | 216.5 | 260.2 | 23 | 31.4 | 96 | 3 | 9069334 | 692 | 1800 | 1000 | 16.3 | |
180 | 300 | 73 | 227.5 | 278.4 | 25 | 34.6 | 103 | 3 | 9069336 | 785 | 2080 | 1000 | 20.7 | |
220 | 360 | 85 | 278.5 | 334.4 | 29 | 40.7 | 125 | 4 | 9069344 | 1070 | 2900 | 800 | 34.5 | |
240 | 380 | 85 | 299 | 353.7 | 29 | 41.7 | 135 | 4 | 9069348 | 1100 | 3100 | 800 | 36.3 | |
260 | 420 | 95 | 325 | 393.1 | 32 | 47.5 | 148 | 5 | 9069352 | 1090 | 3900 | 710 | 51.5 | |
280 | 440 | 95 | 364 | 412.5 | 32 | 46.3 | 158 | 5 | 9069356 | 1460 | 4250 | 630 | 54 | |
300 | 480 | 109 | 371.5 | 447.8 | 37 | 53.1 | 168 | 5 | 9069360 | 1700 | 4900 | 630 | 75.4 | |
320 | 500 | 109 | 393 | 468 | 37 | 53 | 180 | 5 | 9069364 | 1790 | 5200 | 560 | 80 | |
70 | 150 | 48 | 99.5 | 136.3 | 17 | 22.7 | 44 | 2 | 9069414 | 292 | 640 | 2000 | 4.1 | |
80 | 170 | 54 | 113 | 154.1 | 19 | 26.8 | 50 | 2.1 | 9069416 | 360 | 800 | 1800 | 5.95 | |
90 | 190 | 60 | 128 | 172 | 22 | 28.5 | 56 | 2.1 | 9069418 | 456 | 1040 | 1600 | 8.28 | |
100 | 210 | 67 | 141.5 | 190 | 24 | 32.4 | 62 | 3 | 9069420 | 545 | 1270 | 1400 | 11.2 | |
120 | 250 | 78 | 170 | 225.4 | 28 | 36.6 | 74 | 4 | 9069424 | 732 | 1760 | 1200 | 18.5 | |
130 | 270 | 85 | 182.5 | 243.5 | 31 | 39.7 | 81 | 4 | 9069426 | 880 | 2120 | 1100 | 23.6 | |
140 | 280 | 85 | 194 | 254.1 | 31 | 39.8 | 86 | 4 | 9069428 | 928 | 2320 | 1000 | 24.6 | |
150 | 300 | 90 | 209.5 | 271.3 | 32 | 42.1 | 92 | 4 | 9069430 | 995 | 2500 | 1000 | 29.6 | |
160 | 320 | 95 | 219 | 292.2 | 34 | 47.1 | 99 | 5 | 9069432 | 1100 | 2800 | 900 | 35.9 | |
170 | 340 | 103 | 234 | 309.2 | 37 | 48.6 | 104 | 5 | 9069434 | 1280 | 3200 | 800 | 44 | |
180 | 360 | 109 | 249.5 | 327.5 | 39 | 51.9 | 110 | 5 | 9069436 | 1410 | 3600 | 800 | 52.2 | |
200 | 400 | 122 | 278 | 363.2 | 44 | 57.5 | 122 | 5 | 9069440 | 1730 | 4400 | 710 | 73 | |
220 | 420 | 122 | 300 | 383.2 | 44 | 56.9 | 132 | 6 | 9069444 | 1760 | 2650 | 710 | 74.2 | |
240 | 440 | 122 | 318 | 402 | 44 | 56.9 | 142 | 6 | 9069448 | 1890 | 5000 | 630 | 83 | |
260 | 480 | 132 | 343.5 | 440.8 | 48 | 64.7 | 154 | 6 | 9069452 | 2200 | 6000 | 630 | 106 | |
280 | 520 | 145 | 373.5 | 476.1 | 52 | 67.6 | 166 | 6 | 9069456 | 2520 | 6950 | 630 | 137 | |
360 | 640 | 170 | 468.5 | 565.7 | 61 | 81.6 | 210 | 7.5 | 9069472 | 2600 | 10400 | 450 | 234 |
